DIY Marantz 7 based preamplifier

haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata
I recently got hold of a Marantz 7 Diy tube preamp kit available online with some additional aesthetic improvement made by the previous owner.

On the extreme left there is a power knob, next the 2 VU meters and then on right the volume knob and source selector knob.


Posting some internal pics



There are two transformers inside the cabinet own to power the main circuit and another to power the VU meters. The design has 3 input selector which is presently disconnected so that two sets of inputs at the rear are shorted and anyone being fed acts as input. The remaining one set of the 3 inputs are used as inputs to VU meter. The reason it's kept separate input is that the default intensity of line level inputs do not make them oscillate all the way so feeding speaker level inputs is the solution and hence the separate inputs. Although at present I am not using the meters. Also note that the dual outputs are shorted.

The device came with 1 rectifier tube and 2 X 12ax7 Haltron 7025 as drivers and 1 X 12au7 Brimar CV 4003 as cathode follower.

My initial listening experience is posted here

I need suggestions on this to see if there is further scope of improvement. I learnt online that in circuits like these the driver tubes make maximum impact to the output.

I was browsing through online options of 12ax7 that can be rolled here and read that long plate Version of Mullard 12ax7 are one of the best but the cost seems severely high and frankly the sources do not imbibe sense of trust. So the other option seems to buy the branded Chinese ones of the likes of Shuguang 12ax7 and it's variations termed PSVane.

Some folks have bashed M7 for its high noise and unwanted gain, not sure if I concur with that, yet.

Has anyone any other suggestions?

SPONSORED ADS

SPONSORED ADS

sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
Hi Saikat, do you have a schematic for this design ?

Found something similar (Music Angel), uses a different tube in the PRE stage - 6N4, which surprisingly enough is an equal to 12AX7. Any way to confirm ? I got this name off the rear view of your pics.

Schematic attached.

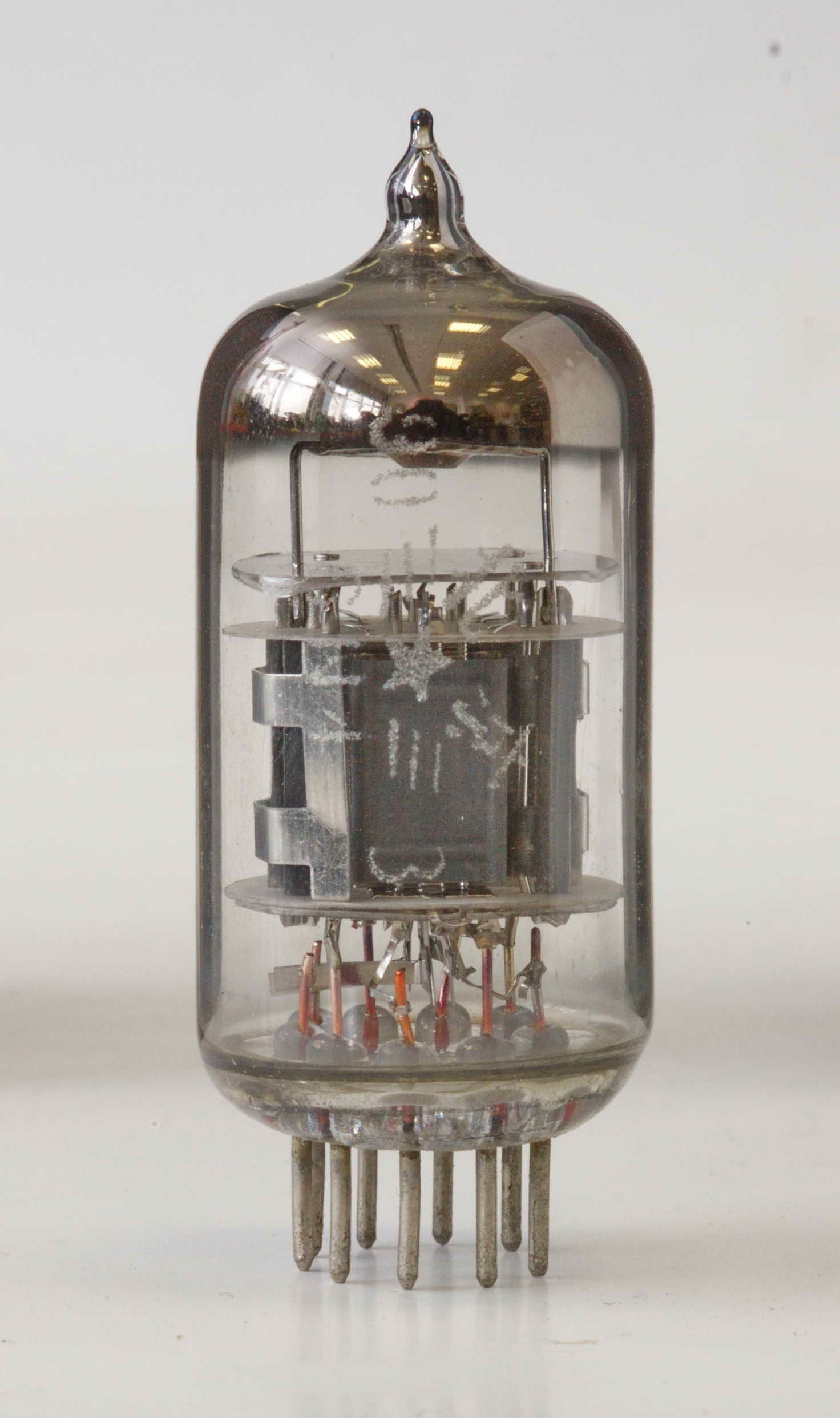

12AX7 link:


Attachments

haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata
Hi Saikat, do you have a schematic for this design ?

Found something similar (Music Angel), uses a different tube in the PRE stage - 6N4, which surprisingly enough is an equal to 12AX7. Any way to confirm ? I got this name off the rear view of your pics.

Schematic attached.

12AX7 link:
Cannot help praising your eyes .. I spoke to Nitin from whom I got this. It's indeed from Music Angel, per him based on his request they made a 12au7 and 12ax7 based version.

I am posting a close up of the circuit

34614

Can you post a closer pic of details from the rectifier tube ?
I took out the rectifier inside and it's written 6Z4 on it. The exact version is

I have also received from him an alternative rectifier tube Russian 6C4P-EV, not tried with it yet. The exact version is

Last edited:

sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
The schematic shows an LM317, possibly for heater supplies. Whats the TO3 (metal can) in your pic ? Closer pic of the text ?


Hari Iyer

Well-Known Member
Joined
Feb 8, 2010
Messages
2,844
Points
113
Location
Mumbai
Hi Saikat, do you have a schematic for this design ?

Found something similar (Music Angel), uses a different tube in the PRE stage - 6N4, which surprisingly enough is an equal to 12AX7. Any way to confirm ? I got this name off the rear view of your pics.

Schematic attached.

12AX7 link:
If it was me, I would go and add a 0.1 uF/ 400v supply bypass capacitors in parallel to both the 10 uF capacitors feeding the tube plates.


sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
Not much scope with improving the 6Z4 rectifier. From the info published online, the Chinese version differs with the American equivalent (6X4), w.r.t pin layout. So, unless you are looking at a rewiring with a new rectifier, after understanding the voltages it's been designed with, your options are none.

The Pre and C.F are running nice tubes. I've tried and like both of them.

Your comment on gain and noise is a personal preference, unless it really bothers you.

So, what are you looking at improving. What are you comparing it with ? Have you tried another amp or speakers ? If your source has a volume control as well, its a good idea to keep that between 80-100% to get maximum benefit w.r.t S/N ratio, and operate your gig with the M7's pot.


haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata
If it was me, I would go and add a 0.1 uF/ 400v supply bypass capacitors in parallel to both the 10 uF capacitors feeding the tube plates.
So, what are you looking at improving. What are you comparing it with ? Have you tried another amp or speakers ? If your source has a volume control as well, its a good idea to keep that between 80-100% to get maximum benefit w.r.t S/N ratio, and operate your gig with the M7's pot.
I put this to both of you to summarize the comparison I have made so far based on my own observation, note that without tubes my system sounds bright to me nowadays. Red areas is where i need to improve, not sure if tube swapping can help

Area of ObservationM7 with above tubesLittle Dot / Mullard M8100 / 6H6PiLittle Dot / Mullard M8161 / 6H6Pi
BassBest, very controlled yet punchySubduedGood, huge improvement over M8100
Male Vocal / JagjitBest, very authoritativeGoodGood
Female Vocal / Shreya Ghoshal / AshaGood but a bit brighter, need to be smootherBest, very smooth, treat to listenGood but a bit brighter
Treble Instruments / HighsGood but a bit brighter, need to be smootherA bit subdued, but can live withGood but a bit brighter
Separation of Vocal with instruments when playing togetherSeparation seems hit, at times in few tracks feel like garbled, not in every songBestGood

SPONSORED ADS

Rajiv

Well-Known Member
Joined
Jan 28, 2008
Messages
1,272
Points
113
Location
Chennai
I put this to both of you to summarize the comparison I have made so far based on my own observation, note that without tubes my system sounds bright to me nowadays. Red areas is where i need to improve, not sure if tube swapping can help

Area of ObservationM7 with above tubesLittle Dot / Mullard M8100 / 6H6PiLittle Dot / Mullard M8161 / 6H6Pi
BassBest, very controlled yet punchySubduedGood, huge improvement over M8100
Male Vocal / JagjitBest, very authoritativeGoodGood
Female Vocal / Shreya Ghoshal / AshaGood but a bit brighter, need to be smootherBest, very smooth, treat to listenGood but a bit brighter
Treble Instruments / HighsGood but a bit brighter, need to be smootherA bit subdued, but can live withGood but a bit brighter
Separation of Vocal with instruments when playing togetherSeparation seems hit, at times in few tracks feel like garbled, not in every songBestGood
Hi,

Replace the poly capacitors with PIO capacitors. Russian K40 capacitors are good and inexpensive. This should smoothen the sound .

Regards
Rajiv


Hari Iyer

Well-Known Member
Joined
Feb 8, 2010
Messages
2,844
Points
113
Location
Mumbai
Haisaikat,
What IC cables are you using and what wires for internal wiring of the preamplifiers?

IME, I used telephone cables for internal wiring of my line I/p and o/p. This I replaced with very thin tinned copper stranded wires. Both these wires attracted stray RF & EMI which got coupled with the audio and added a sparkle/ brightness to the sound stage. Using shielded cable was not an option as cable capacitance increases rolling of signal early.

To address the RF& EMI coupling I added an RC LPF at all inputs and outputs. This removed all the brightness and made the soundstage very mellow and smooth. You can consider this option


sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
I've found differences with PIO in some areas but not always. Good luck with this one.

I don't believe in the 'cable change' theory. Give it a shot, your ears may convince other wise.


haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata
What IC cables are you using and what wires for internal wiring of the preamplifiers?
I am using DAC ARX01A for all interconnects in my chain, and when i switch preamps to Little Dot just reuse the same ICs. Internal wires I am not sure of, can send pictures if that helps, i have kept what came by default.

To address the RF& EMI coupling I added an RC LPF at all inputs and outputs. This removed all the brightness and made the soundstage very mellow and smooth. You can consider this option
Thanks, will need some component suggestions, not that knowledgeable on this kind of work

Replace the poly capacitors with PIO capacitors. Russian K40 capacitors are good and inexpensive. This should smoothen the sound .
thanks, you mean the orange ones or some of the black ones. apologies for noob question

If your source has a volume control as well, its a good idea to keep that between 80-100% to get maximum benefit w.r.t S/N ratio, and operate your gig with the M7's po
This really helped, it goes without saying that I need a input selector with volume control in my chain, received @Aniket designed preamp, thanks to @sachu888 and @sadik for all the effort in putting it together, so my current chain is CDP->Aniket;s Preamp-->M7 --> poweramp. Turned off the digital volume control / preamp function of CD Player, kept Aniket's pre-amp volume at centre point which is unity gain position, note its damn transparent and does live up to its expectations, and then keeping the M7 volume at 9-10 o clock. The silence hum is reduced.


Hari Iyer

Well-Known Member
Joined
Feb 8, 2010
Messages
2,844
Points
113
Location
Mumbai
Haisaikat,
I am not aware about rest of your chain but shall mention what worked for me.

For all line inputs - cd player, tape deck and DACs I have used a 1 MHz LPF. This is at the input selector board. From the board to preamp input board I have used 350 KHz LPF.

In the power tube amplifier input just before the predriver tube grid I have added one more LPF @ 700 KHz.

Hope this helps.


haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata

sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
THAT is one crazy thread, considering the number of different tube types the same design has been modded for.

Two preamps piggy-back, for whatever reason is not a bright idea. You have two pots, two different gains, two preamp stages and two output stages. Have you tried with the DAC direct to the M7 ? Whats the drawback here ? Losing an additional input ?

That thread suggests various mods, maybe try those.

Just reread your original post, you've got a single input and the remaining have been butchered for various reasons.

You should try that single input and let us know how it sounds. Can't be that bad.


haisaikat

Well-Known Member
Joined
Dec 12, 2010
Messages
2,868
Points
113
Location
Kolkata
THAT is one crazy thread, considering the number of different tube types the same design has been modded for.
My apologies, probably copy paste error, I tried to refer to this thread.


Have you tried with the DAC direct to the M7 ? Whats the drawback here ? Losing an additional input ?
Yes, its exactly similar, I know there is a longer signal path here but to my years with only M7 it's still the same. Regarding multiple pots, it's the same reason why I had all of them maxed initially and controlling via the digital volume control of source.


sunilj

Active Member
Joined
Aug 10, 2011
Messages
232
Points
43
Location
Bangalore
Don't know how to help further. You've got good tubes already, can't say any more 'rolling' will change the sound appreciably.

Maybe give the mod suggestions mentioned by our members. Just a thought, have you tried a different and /or speakers to see if they interact differently ?
