Looking to build an open-baffle speaker for bedroom desktop application to be used along with a Topping PA-3 amplifier. Any pointers around which drivers to use, cost (I want to keep it as low cost as possible) and availability in India.
Full Range Drivers for Open-Baffle
- Thread starter sydney
- Start date
srinisundar
Well-Known Member
Go with Boston/ Philips 8" drivers which is good....
Any pointers on where to get them
Also got a suggestion for Lii Audio drivers (from another forum member). However they are having issues shipping from China
shafic
Well-Known Member
I have two pairs of Philips 8" Full range speakers.
Cheap n best.
Cheap n best.
As its a desktop application looking for something around 5-6 inch
Where do I get these from any links
These guys seem to be distributors http://www.soundland.in
srinisundar
Well-Known Member
I also bought that and i will be testing it next week in open baffle.. Not a small one, slightly bigger telefunken baflle. It has good reviews and not expensive.
I got it from you only and it is very good.
Did u get the Lii audio
Kannan_madhu
Well-Known Member
Before you make a decision , OB needs space and for bass you have to have drivers above 12 inch or multiple drivers . As yogiji suggests Faital is good for OB . Other options are hi q drivers you will get some in local market for 400 to 600 don't expect any high quality but it's a good starting driver to experience ob . You may have to eq them otherwise they may sound harsh . There is a brand called award which has a 3 inch driver which cost 200 and the sound good in OB considering the price .
So i would not need a lot of bass (no sub or big woofer drivers) it would mostly be for low volume/background listening. Do you think its a bad idea to have OB for tabletop speakers (to be precise they would sit on top of a piano).
srinisundar
Well-Known Member
Yes i did. 6"

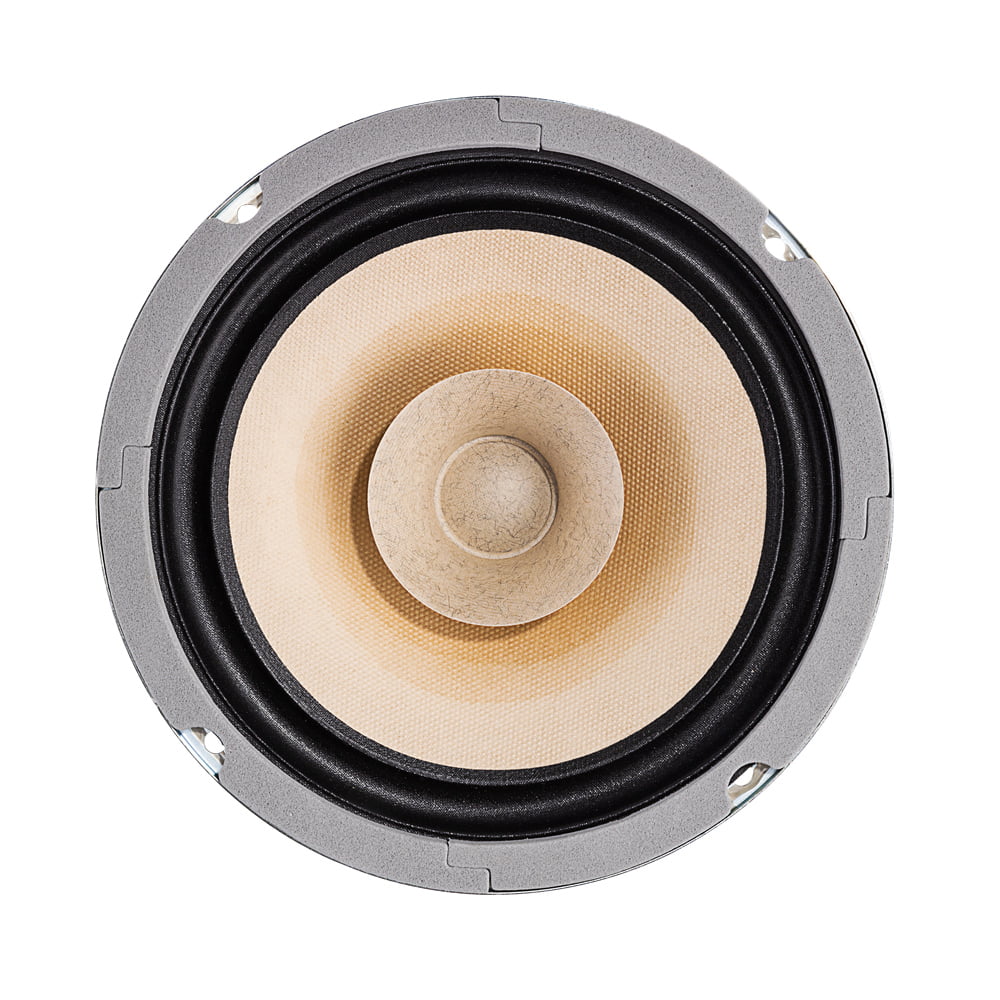

One Pair | 6.5 Inch Full Range Speaker Driver | F-6 - Lii Song (Lii Audio), unique speaker, amplfier, quality and cost-saving parts for HiFi DIY
Exclusive cone made of special straw, with unique look and good audio performance Can connect directly to amplifier without crossover or filter, no signal loss or phase distortion High sensitivity, can be easily driven by low-power amplifier or 2W tube amplifier Can be used in multiple...
www.lii-audio.com
May be you try some vintage oval isphone drivers in ebay and it will sound damn good in smaller OB combined with 6" woofer with 2" tweeter.. It may not look not so big and it can accommodate like a desktop speaker. The sound is so realistic.
Kannan_madhu
Well-Known Member
In small rooms OB may not be a better idea , may be a hybrid with a OB full range covering mid and high with a sealed or ported woofer . One issue is you have to have a crossover for such build . Making an optimal crossover for the particular drivers and box is not a easy task
srinisundar
Well-Known Member
arunkvivek
Well-Known Member
Did you get any finder fee?
Thirumalkumaran
Active Member
Lii audio f6 is a great option, alternatively, you can look at Tang Band W8 1808. Really good driver for open baffle or back loaded horns.
nosortf
Active Member
How low in frequency do you plan to go down with this open baffle?
With constant backing from a forum member @var1681 (he vouches for Lii Audio Silver but due to import restriction unable to source currently) and to beat lockdown boredom tried my lucky at a very low cost open-baffle.
Drivers used Visaton (Ordered from RS Components for ~5K) | Speaker terminals from MX Electronics | Old speaker wires between driver and Terminals | Speaker to Amp high-end speaker banana terminated wires from my main system | Flat boards (hardboard from Vinyl record packing from Revolver club) and a bit of carpentry & soldering skills........and then a final product. Total work around 3 hrs and then 1 hour of cleaning the dust.
My main rig is an AudioNote which is like 10 times the total of of the amp+dac+spkrs. Sound wise open baffles are so natural in vocal and instruments however lack the bass (low-end) factor. Could compensate this with subs but since this is a bedroom setup can live with it. Now during office hours this has become my main listening rig and as the days progress im beginning to like what I hear. May be can do some imporvement of the flatboard material and size to get and even better sound.
Thanks to all for you advise/opinions
Drivers used Visaton (Ordered from RS Components for ~5K) | Speaker terminals from MX Electronics | Old speaker wires between driver and Terminals | Speaker to Amp high-end speaker banana terminated wires from my main system | Flat boards (hardboard from Vinyl record packing from Revolver club) and a bit of carpentry & soldering skills........and then a final product. Total work around 3 hrs and then 1 hour of cleaning the dust.
My main rig is an AudioNote which is like 10 times the total of of the amp+dac+spkrs. Sound wise open baffles are so natural in vocal and instruments however lack the bass (low-end) factor. Could compensate this with subs but since this is a bedroom setup can live with it. Now during office hours this has become my main listening rig and as the days progress im beginning to like what I hear. May be can do some imporvement of the flatboard material and size to get and even better sound.
Thanks to all for you advise/opinions
Attachments
ShantaramChari
Active Member
Sir, do you still have it?
