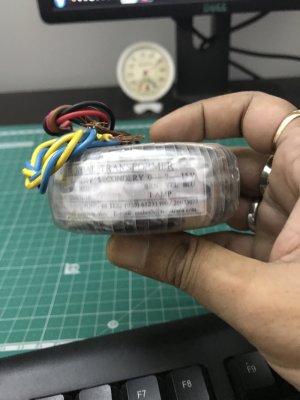

I have these Torroidal transformers. Can you suggest a suitable amplifier to build these as the power supply?

[crosstalk]

Hi,
These were bought several years ago for a different project which never happened. I have got 5 of these and hoping to make some use of atleast 2 to build a sweet sounding amplifier. They are 15V / 1 AMP on the secondary, so not sure what options I have. Willing to go for separate power supplies for separate channels.

Any suggestion is appreciated.

Thank you.



[availlyrics]

Assuming you know basic electronics,
Since current capacity is only 1A
a. You can build amps based on dual supply TDA 2050 OR LM1875 kits . You can use these to build monoblocs 15V X 2 (15-0-15 AC) trannys output in series per channel . Total 4 trannys for stereo
or
b. 0-15 trannys for single supply TDA 2030 TDA 2050 OR LM1875 kits per channel Total 2 trannys for stereo

It would have been simpler If you had single CT 15-0-15 AC 5Amp tranny. Then I would have recommended LM3886 OR TDA 7294 Kits
Beware- lots of fake kits ICs on sale



[crosstalk]

Assuming you know basic electronics,
Since current capacity is only 1A
a. You can build amps based on dual supply TDA 2050 OR LM1875 kits . You can use these to build monoblocs 15V X 2 (15-0-15 AC) trannys output in series per channel . Total 4 trannys for stereo
or
b. 0-15 trannys for single supply TDA 2030 TDA 2050 OR LM1875 kits per channel Total 2 trannys for stereo

It would have been simpler If you had single CT 15-0-15 AC 5Amp tranny. Then I would have recommended LM3886 OR TDA 7294 Kits
Beware- lots of fake kits ICs on sale

Thanks availlyrics.
I do have a TDA2050 stereo board made by eightaudio.




Can this be put to use?



[bobbyprajan]

a. You can build amps based on dual supply TDA 2050 OR LM1875 kits . You can use these to build monoblocs 15V X 2 (15-0-15 AC) trannys output in series per channel . Total 4 trannys for stereo

When you connect transformers in series, please take care that the windings are in phase otherwise the voltages will cancel out each other



[crosstalk]

When you connect transformers in series, please take care that the windings are in phase otherwise the voltages will cancel out each other

Noted. Thank you.



[availlyrics]

Thanks availlyrics.

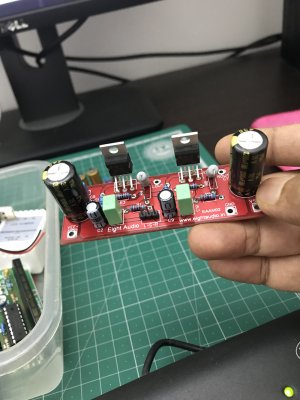

I do have a TDA2050 stereo board made by eightaudio.

View attachment 70825


Can this be put to use?

Perfect! Now use only 2 trannys , input 230V in parallel and output in series "in phase" or you can just rectify and filter and then join them in series to supply +/- and 0V to amplifier. Be cautious about polarity and DC at output of amplifiers. Don't plugin your B & W Nautilus;-) immediately. Use some crappy speakers for testing, preferably with some series 47 or 100R power resistor. Incase if you don't have any speakers to test use bike incandescent indicator bulb as a dummy load . Use or buy any elcheapo multimeter. For using 4 trannys, you will have to cut traces, so leave that part for future upgraded. Remrmber- Measure twice and cut once.
