Presenting MiniAliens - micro bookshelf speakers with Fountek FE85 and Dooge Sound DE16

[biyer]

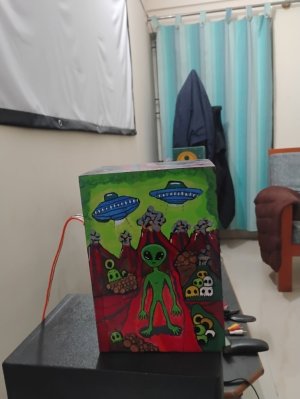

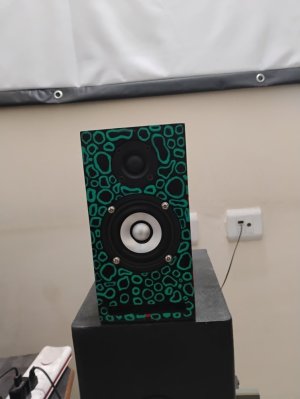

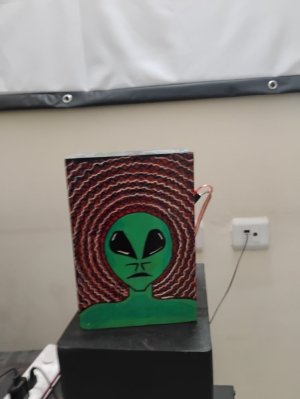

My Latest Project, with artwork by my wife.

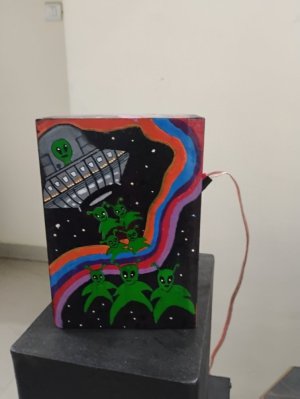

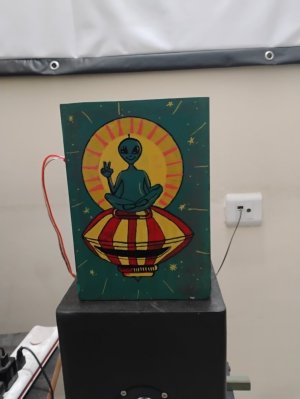

2nd Speaker

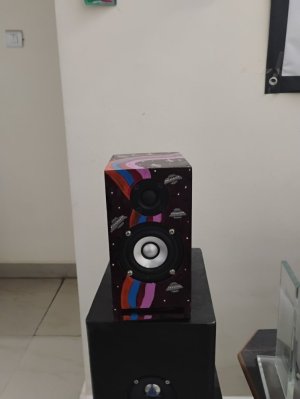

Micro bookshelf speakers with Fountek FE85 and Dooge Sound DE16

The tweeters are fair enough.

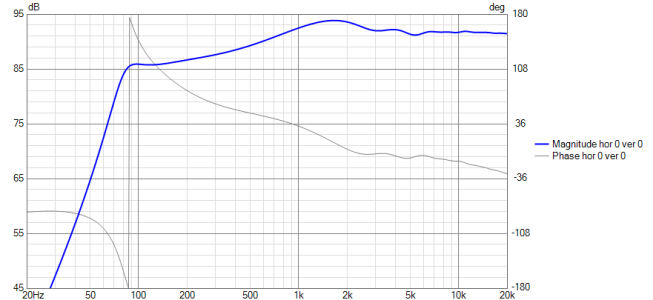

Tweeter Diffraction



Woofer Diffraction

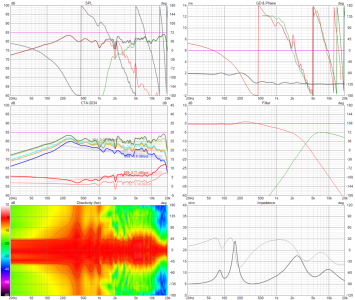

Below is the Crossover simulation using attached FRDs captured in box.

Did not merge FE85 nearfield measurement.

All gated measurement upto 5ms
0-180 degrees horizontal
+-60 degrees vertical








Dont have time to capture Actuals . Will do on some later date.



[grindstone]

I like them very much -- your wife has an eye for keeping them fun! Bravo.



[biyer]

I like them very much -- your wife has an eye for keeping them fun! Bravo.

Getting her involved is a way to get easy WAF



[biyer]

My Latest Project, with artwork by my wife.


View attachment 95369

View attachment 95370

View attachment 95371

2nd Speaker

View attachment 95372

View attachment 95373

View attachment 95374

Micro bookshelf speakers with Fountek FE85 and Dooge Sound DE16

The tweeters are fair enough.


Tweeter Diffraction
View attachment 95367


Woofer Diffraction

View attachment 95368

Below is the Crossover simulation using attached FRDs captured in box.

Did not merge FE85 nearfield measurement.

All gated measurement upto 5ms
0-180 degrees horizontal
+-60 degrees vertical



View attachment 95363




Dont have time to capture Actuals . Will do on some later date.

The box is 2 liters tuned to 80hz. Inspired by Jeff bagbys quarks mosd project.

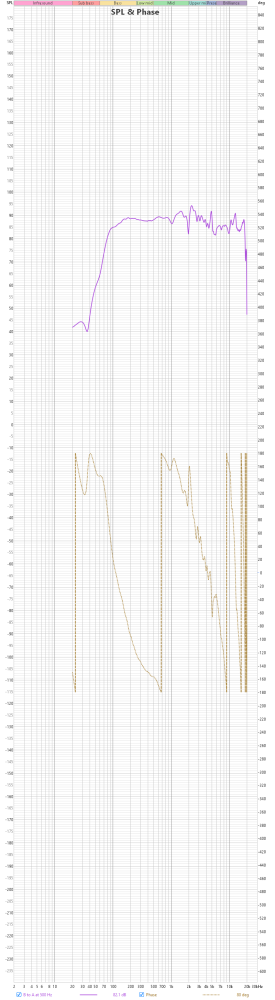

The diffraction frd will be used to form low frequency response along with near field measurements and then merged to actual/predicted crossover response. Near field merged with diffraction



The crossover is second order around 2.8khz


These are going to be PC speakers supported by a 10 inch dainty sub

I will use rew measurements and equalization to further linearise and correct speaker response.

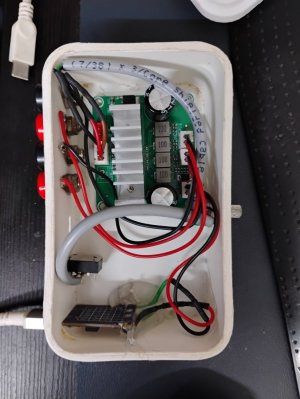

Will be building an analog lpf/hpf using original ne5532 opamps . Prototyped first using 4558d op amps.
