SMD Audio custom set up with Dayton audio and Fountek drivers

Audiocat

New Member
Joined
Jan 9, 2020
Messages
12
Points
3
Location
Mumbai
Hi,

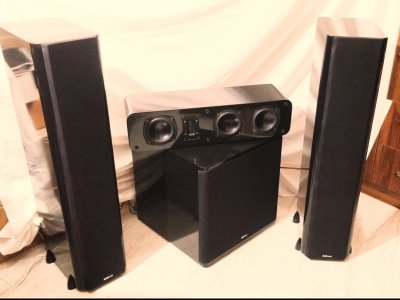

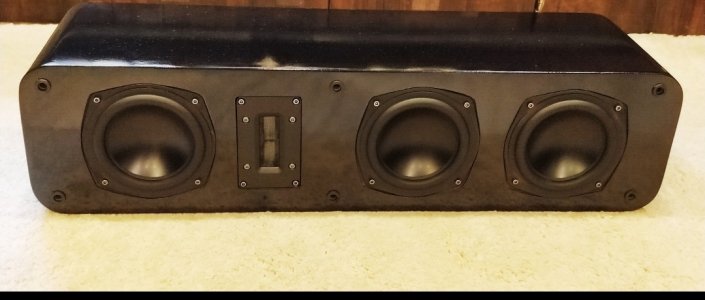

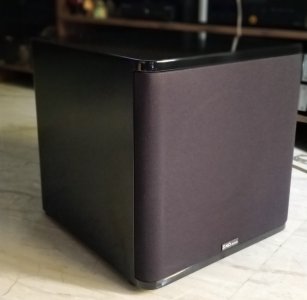

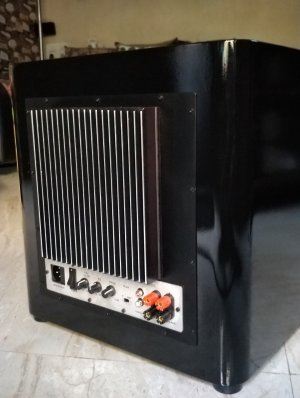

After a while got a chance to be present while this SMD Audio custom set up was being tested. So thought of posting some pics of the set-up. It's a 7.1.2 speaker package built as per request by an outstation customer. The LFs and Mids are Dayton audio and the HF are Founteks. Also saw a three way centre channel speaker after a while. There were bipolar surrounds too but don't have their images here. I know some would like details of the build and so copy-pasting the specs for floorstanding speakers only as posted by SMD Audio on YouTube. My limited technical knowledge allows me just that. Hope you like these.

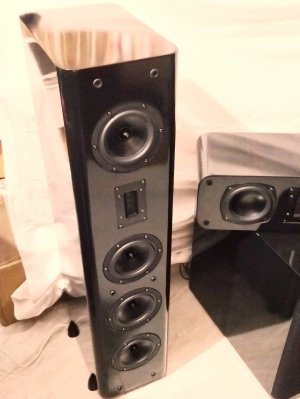

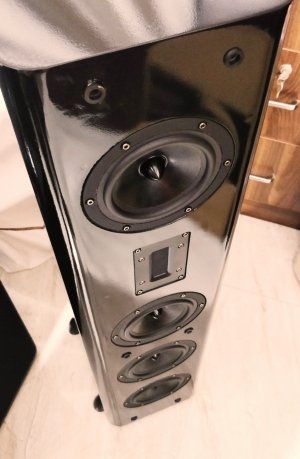

* Design.. Three way 5 drivers bass reflex.
* Cabinets.. High grade waterproof MDF. with sandwich front baffle, rear dual ported , internal chambering and fully braced. Moulded to perfection, High gloss paint finished. Special L-base with spikes for min floor contact.
* Drivers...

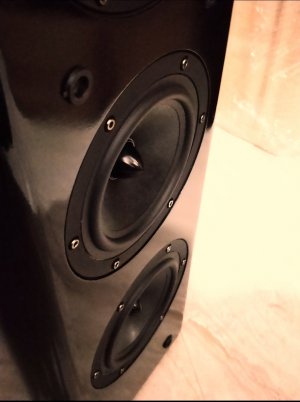

LF... 150mm composit paper cone wide range mid woofers (mix of kevlar and paper) x 3
Midrange... 150mm composit paper cone wide range mid woofer placed in independent chamber.
HF... Ultra LF AMT( Ribbon) tweeter placed in independent chamber.
* Crossover network... 24db/oct (4th order) on HF and 12db/oct on mid and LF With reverse polarity for the Midrange.
* Crossover points.. 400Hz-6000Hz
* Full OFC internal wiring
* Damping material.. Polyfil
* Power handling.... 200 watts RMS
* Frequency response.. 38Hz-27000Hz

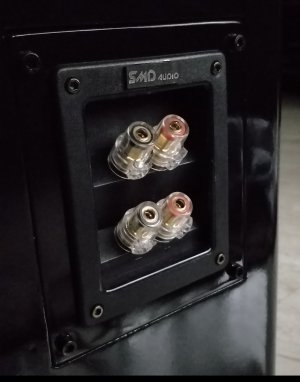

* 24 karat gold plated glass coated speaker terminals.
* Bi ampable/ Bi wireable design.
* Weight... 23kg per tower.
