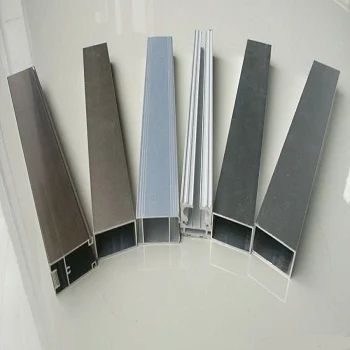

ALUminum cabie from a nearby store items

[kaushik]

An interesting video shows how these

can become an amp cabinet

video link :https://www.youtube.com/watch?v=WxlSFEp10ZY



[saikatbiswas82]

I came across this video tutorial a couple of months back when I was desperately looking for cabinet ideas for my AmpCamp. This type of cab might be useful for class D type amps or most preamps. But due to inadequate heatsinks, they might not be useful for class a or class ab type amps.

Sent from a handheld device. Some typos may creep in



[tcpip]

I came across this video tutorial a couple of months back when I was desperately looking for cabinet ideas for my AmpCamp. This type of cab might be useful for class D type amps or most preamps. But due to inadequate heatsinks, they might not be useful for class a or class ab type amps.

Sent from a handheld device. Some typos may creep in

Saikat, if you're willing to build a chassis using this approach, by working with sheet metal, then why don't you just go ahead, and for heatsinks, get them from Precious Electronics? Visha Electronics in Lamington Road will make heatsinks for you from the Precious catalogue, cut them to any size you specify (in mm) and powder coat them black for you.

You've seen these, I guess?

http://preciousindustries.net/hs_Mosfets_TO220_TOP3_SimilarPackage.html

There are a few more pages of this catalogue.

Visha will work with whatever section you select from this catalogue. I've done this many times. I believe they'll be happy to take orders on the phone too, and ship, though I haven't had to do this.



[saikatbiswas82]

Thanks a lot for the pointer. However, I built my first cabinet using sheet metal only. Here's the link

http://www.hifivision.com/diy/62995-my-diy-amps.html

Could you share the contact information of Visha Electronics please?

Sent from a handheld device. Some typos may creep in



[tcpip]

Thanks a lot for the pointer. However, I built my first cabinet using sheet metal only. Here's the link

http://www.hifivision.com/diy/62995-my-diy-amps.html

Could you share the contact information of Visha Electronics please?

Just Google for Visha Electronics. They even have a website.

Great build BTW. With heatsinks like the ones you've used, you don't need any help from Visha Electronics.



[saikatbiswas82]

Great build. With heatsinks like the ones you've used, you don't need any help from Visha Electronics.

Actually I might need help on heatsinks of custom dimensions. Thanks again.

Sent from a handheld device. Some typos may creep in



[kaushik]

I came across this video tutorial a couple of months back when I was desperately looking for cabinet ideas for my AmpCamp. This type of cab might be useful for class D type amps or most preamps. But due to inadequate heatsinks, they might not be useful for class a or class ab type amps.

Sent from a handheld device. Some typos may creep in

yes some class A amps need bulk of HS. i have done research on a super silent fan based cooling system . this system cools 8inch heat sinks even further and silent .may be some day i will have a demoable proto



[saikatbiswas82]

yes some class A amps need bulk of HS. i have done research on a super silent fan based cooling system . this system cools 8inch heat sinks even further and silent .may be some day i will have a demoable proto

What type of fan did you use for this btw? What is the current consumption for those fans?

Sent from a handheld device. Some typos may creep in



[kaushik]

What type of fan did you use for this btw? What is the current consumption for those fans?

Sent from a handheld device. Some typos may creep in

info is kept secret for good reasons.... just a demo will introduce to it

the current will not be much in 0.65-0.85 range



[saikatbiswas82]

That's great. Will be looking forward for the demo.
