Power Supply Circuit Diagram for LM 3886 - Dual Mono Boards

sureshkuranjalayil

Active Member
Joined
Jan 28, 2009
Messages
133
Points
28
Location
Mumbai
Hi,

I have got 2 mono Amp Boards of LM 3886. Advise and suggestion required from members to make a suitable Power Supply for these two boards to be used as Stereo.

I have got following components available with me:-

EI Transformer 24-0-24 5 Amps - 1 No.
Bridge Rectifier KBPC 3510 - 2 Nos.
10000uf 63 V Electrolic Capacitor - 4 Nos.

Thanks in advance !!


manniraj

Well-Known Member
Joined
Jun 3, 2011
Messages
2,422
Points
113
Location
Chicago

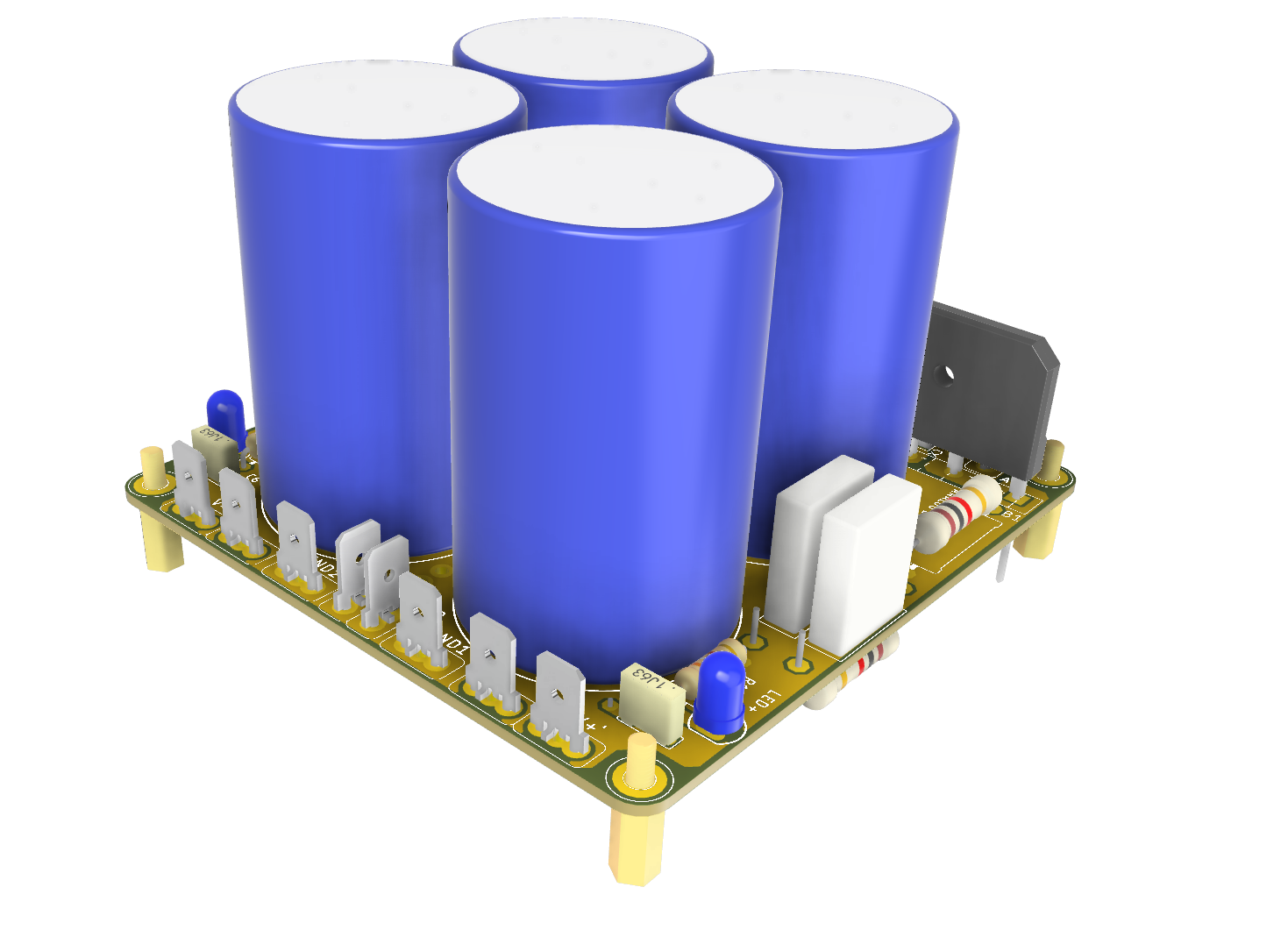

I used a simple CRC psu board from a member Prasi of diyaudio.com site. He even shared it directly on the pcbway site for you to get it printed or download the gerbers. If you get it printed directly from the pcbway site Prasi will get 1% or so as payment for sharing which I feel is pretty good considering he shared the layout for the public.
