Success: Technics SL1200MKII Tonearm Rewire and Damping

Wharfedale Diamond 11.1 & 11.2 Speakers

omishra

Well-Known Member
Joined
May 31, 2011
Messages
2,449
Points
113
Location
Pune
Success: Technics SL1200MKII Tonearm Rewire and Damping

From car damping success wrt noise and resonance, I was curious to know what happens to this delicate piece of engineering marvel. After reading I cam to know this tonearm has resonance of below 13Hz. So damping will help for low frequency. Metal ringing was supposed to garble HF. So after carefully understanding Service Manual and various forums, I made my mind to go ahead with this project.

My TT was already has gone upgrade of Stock RCA cable replaced with low capacitance component cable, thanks to forum member Sachin. Somehow during first attempt of damping I broke delicate stock tonearm wire. So it was high time to replace all tonearm wires. Thought of replacing headshell wire leads too.

This is step by step journey of my efforts.

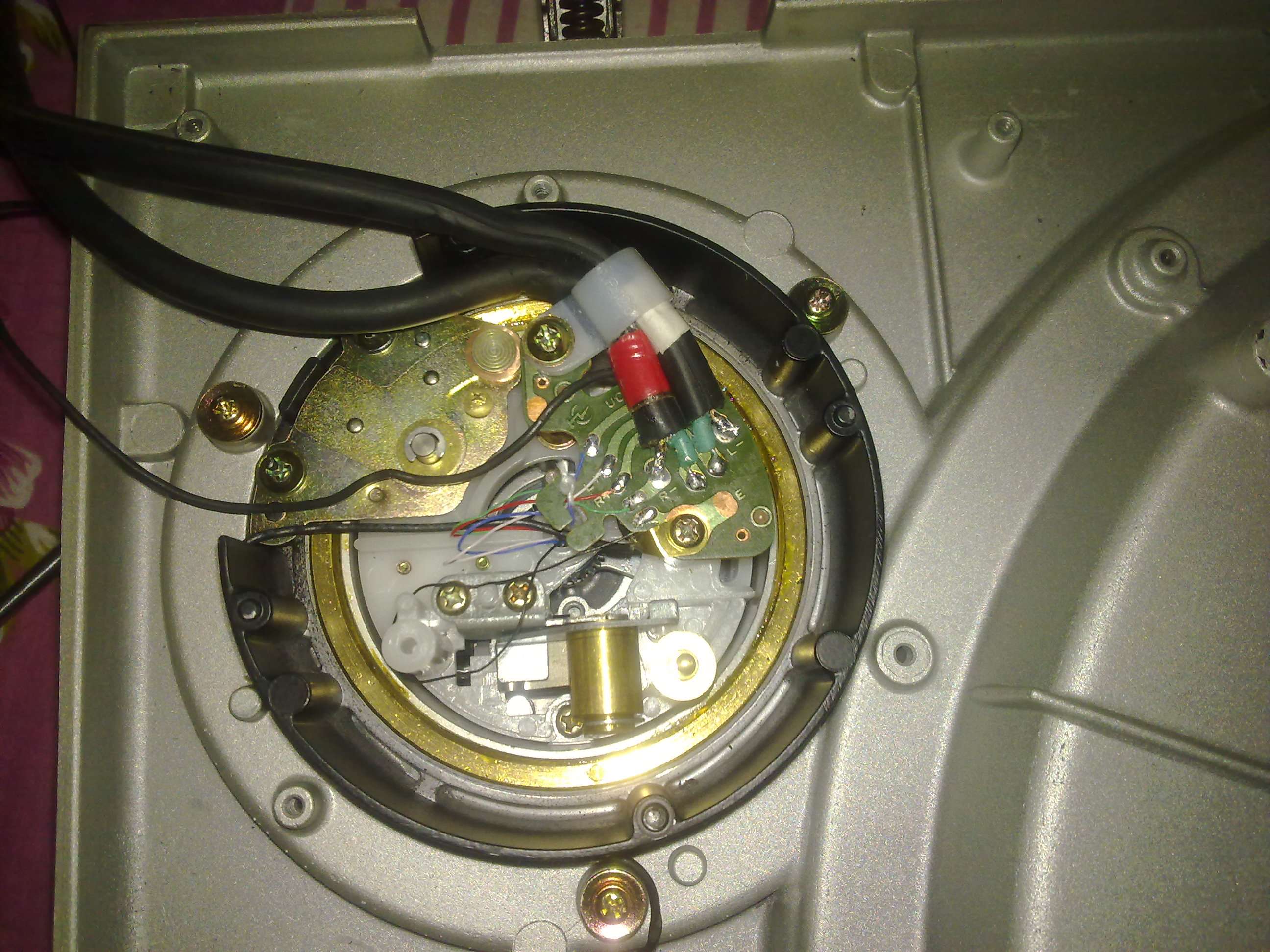

Original tonearm base from bottom side:



BOM:
  • Ear plugs (3M): It is used for damping hollow portion of tonearm which holds balance weight part. It will be used after removing chord, only plugs.
  • Cotton Sleeves: This was supposed to used as stuffing inside tonearm. 6" leaving area of headshell DIN socket wires and ground lug connection. This is
    loosely wound, light weight, soft and without any varnish or color.
  • Cardas wires: This is litz wire insulated with Teflon. Used 11" for exact wiring inclusive of 1" extra wire loose around.
  • Heatshirnk tube (2:1) - 125C/10mm dia for damping outside of tonearm, used aprox 6". Better measured on the tonearm tube directly.
  • New headshell wires.
  • Wire holding nylon clip for RCA wires

New material will add extra weight of <1.0 grams




This is how I pulled those delicate wires. Look at the single wire of cat5 cable against tonearm wires. While handling these are real pain in bottom side of human being.



Cotton sleeve is added, extra length will be cut.



Heatshrink tubing done over tonearm pipe. Gently heated by holding in hand, 12-15" above over flame of kitchen gas stove.



New wires are through.

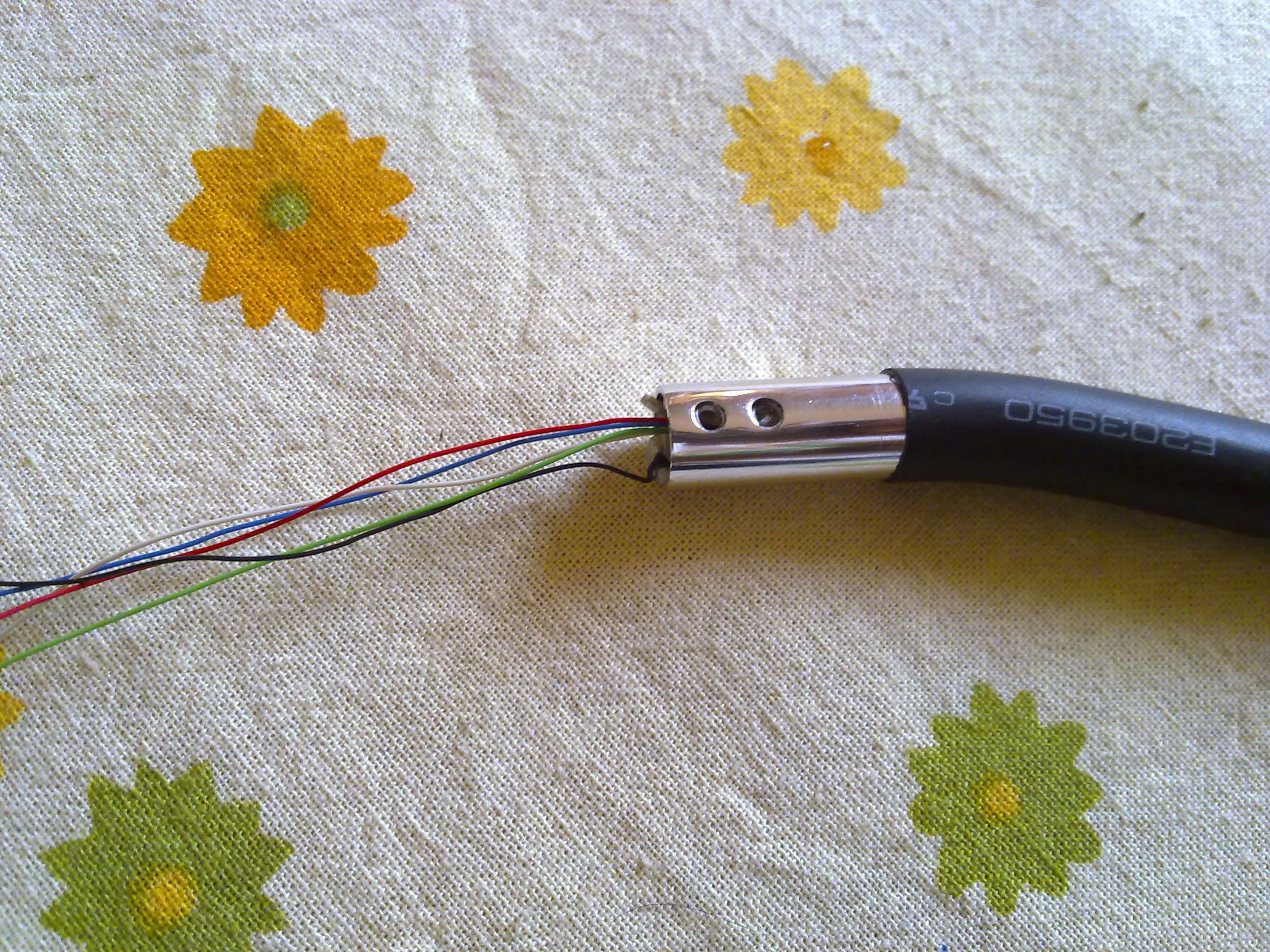

This is how tonearm end looks



Now wires will be pulled from base of bearing area.



Tonearm tube finished with new wires in place.



Tonearm base added to tube.



Complete assembly into Bottom plate. Here I have adjusted anti-skate which was off by -0.200 grams. VTA setting was off by 1mm. I followed steps mentioned in Service Manual. Anti-skate spring should contact resting tonearm handle at 0.5 setting. For VTA 0-6mm adjustment should be equal on both side of reading scale position '3'. Also with the help of toothpick, I put 1 drop of Sewing machine oil to each side of tonearm bearing



Bottom side wiring completed



Closeup of bottom side wiring. I kept solder material as little as possible. I did not exclude that PCB because it does not harm anyway. It provides better handling and mechanical strength, keeps area tidy and neat. I am not blessed to hear differences by excluding PCB and connecting directly to RCA wires.

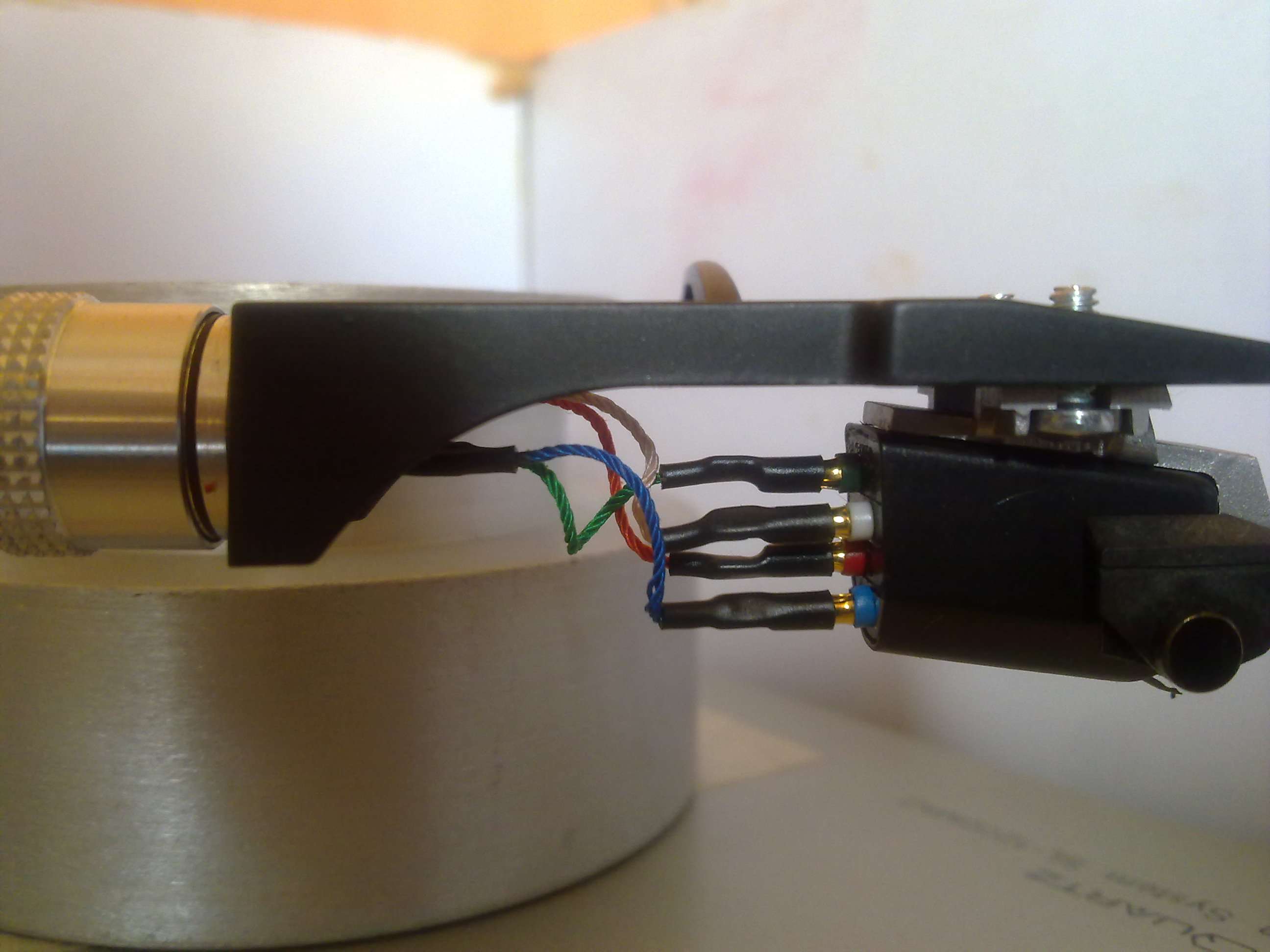

New headshell Litz wires are in place.



Happy singing



Some tips which helped me a lot:
  1. Never pull wires, specially tonearm wires. Its outer jacket extends and you feel extra length of wire without any copper inside it. Handle it with extra care.
  2. Be extra careful while working around/with tonearm bearing. Here you can loose small metal balls from bearing. Refrain from applying force to bearing screws. just gentle tightening will do. Otherwise loose bearing will have play and tight runs risk of bearing damage along with adding distortion in sound.
  3. While soldering these wire, never strip using any other stripper tool or blade. I used molten solder blob to burn required coating. Just apply some wax over the wire and insert inside molten solder material. This will burn the cover and tin the strands. Clean solder tip for each wire end and use fresh solder material.
  4. Keep photo of each step before removing any screw. This will help if lost track of actions in between.
  5. Never be in hurry. Patience is good way to follow.
  6. Most important - before putting back assembly, wash you hands and clean every part of metal in contact using IPA or PCB cleaner solution. Clean contacts in grounding, headshell sockets, wires, clips will eliminate buzzing, hum and unwanted resonances.
  7. Complete VTA, VTF, anti-skate setting properly. Cartridge is well aligned. Otherwise all above effort is in vain.

Now the difference:
I can't describe unless you hear it. ;)
In summary - Bass details are noticeable, HF is clearer than ever. Vocals are smooth. This system became more silent (I am getting this feeling as I can notice more details everywhere in song). :eek:hyeah:
In one line - My turntable is turned into something new in better way, never heard it so clean, better sounding.
Pending, I could complete recapping. Caps are arrived and kept aside. Now take some rest before taking anything further.

Thanks for reading.

Last edited:

sachu888

Well-Known Member
Joined
May 8, 2010
Messages
2,768
Points
113
Location
Gwalior,Nashik
Hi Om,
Nice work as always and very good step by step guide with pics.My Technics is also due for such modification.

Regards,
Sachin


Flash

Well-Known Member
Joined
Jul 13, 2011
Messages
1,524
Points
113
Location
Bombay / Pune
Nice.
Was waiting for you to put up the pics .
Let see if I can make it to your place this weekend.

PS : I am still waiting for the cutlist ?
I should be able to get the basic cabinet panels for you and sachu in place by next weekend.


Bluu

New Member
Joined
Oct 21, 2009
Messages
811
Points
0
Location
Bangalore
I don't know anything about what you just did but the step-by-step detailed guide and pictures are a real treat. Great effort!


Tanoj

Active Member
Joined
Jul 6, 2011
Messages
515
Points
43
Location
Bangalore
Hello Ommishra ji

firstly a great round of aplouse :clapping: for your artistic and proffesional work , ...

The tonearm now looks more better , and i love the tonearm sleave

i would need your assistance if acquiring all the parts , Ear plugs , New headshell wires, Heatshirnk tube , Cardas wires, RCA cable

if possible please order them for me and i can transfer the money to you

regards

Tanoj


omishra

Well-Known Member
Joined
May 31, 2011
Messages
2,449
Points
113
Location
Pune
Hello Ommishra ji

firstly a great round of aplouse :clapping: for your artistic and proffesional work , ...

The tonearm now looks more better , and i love the tonearm sleave

i would need your assistance if acquiring all the parts , Ear plugs , New headshell wires, Heatshirnk tube , Cardas wires, RCA cable

if possible please order them for me and i can transfer the money to you

regards

Tanoj
Tanoj, Thanks!

Heat-shrink tubing and nylon clip for RCA wire is locally bought from market. You can find it locally at any electrical-cum-hardware store.

Other items and sources are as follows -

Cardas wire - Parts ConneXion - The authority on hi-fi DIY parts and components search product codes for different colors
CARDAS-70871, CARDAS-70872, CARDAS-70873, CARDAS-70874, CARDAS-73813
or - KAB ELECTRO ACOUSTICS ->Sound Accessories -> INTER CONNECTS


Cotton Sleeve 1 ft X 7mm/5mm Cotton Tube - http://www.partsconnexion.com/product1179.html

Headshell Lead wires
1 set X Headshell Connector wire - AUDIO QUEST HL-5 Headshell Leads,
or here Garage 'A Records: Product Detail

Ear plugs from local tool/sports shop or here

RCA cable was leftover of component cable from Sachin. So he can point of source.


nraghunadh

Well-Known Member
Joined
May 31, 2009
Messages
170
Points
63
Location
Hyderabad
Oh.... I missed this thread yesterday. Cartridge cables are looking great. which cables are you used for tonearm? We can use old mouse cable for tonearm wires. I used the same in my previous Cosmic Cogram restoration. Any way it looks great.
Thanks


sachu888

Well-Known Member
Joined
May 8, 2010
Messages
2,768
Points
113
Location
Gwalior,Nashik
Oh.... I missed this thread yesterday. Cartridge cables are looking great. which cables are you used for tonearm? We can use old mouse cable for tonearm wires. I used the same in my previous Cosmic Cogram restoration. Any way it looks great.
Thanks
We had bought Cardas Tonearm wire from Partsconnexion,Canada.I will send you if you need.I did not rewire my tonearm.

Regards,
Sachin


grubyhalo

New Member
Joined
Nov 14, 2008
Messages
2,004
Points
0
Location
Depends...
Fantastic work, dunno how I missed this thread for over a year!

Any plan to try the following mods?

1. Damping the plinth
2. Disabling the strobe
3. Upgrading the PS


sachu888

Well-Known Member
Joined
May 8, 2010
Messages
2,768
Points
113
Location
Gwalior,Nashik
Fantastic work, dunno how I missed this thread for over a year!

Any plan to try the following mods?

1. Damping the plinth
2. Disabling the strobe
3. Upgrading the PS

There is no need to damp 1200 plinth IMO.It is already well damped.It comes with rubber coating inside.The sound will become muddy if we over dump it.
Power supply upgrading is good.I have suggested OM to remove Power supply PCB and Trafo and put it into another enclosure.

Regards,
Sachin


nraghunadh

Well-Known Member
Joined
May 31, 2009
Messages
170
Points
63
Location
Hyderabad
We had bought Cardas Tonearm wire from Partsconnexion,Canada.I will send you if you need.I did not rewire my tonearm.

Regards,
Sachin

Thank you Sachin, I will change with Cosmic or SL1210 tonearm wire.

Thanks
Raghu


Tanoj

Active Member
Joined
Jul 6, 2011
Messages
515
Points
43
Location
Bangalore
Cool man
that guy did marvelous job refurbishing the Technics TT

i used to refurbish photocopiers earlier, however would not dare to do it to my TT, cos i may misplace minute parts.

Cheers
Tanoj


omishra

Well-Known Member
Joined
May 31, 2011
Messages
2,449
Points
113
Location
Pune
Om, sorry if I am making your thread into a general Technics mods thread!
Found another cool link on the same site -

Technics disassembling, bondo and paint how-to!

No problem quad! :) Thanks for the food for brain.

I will choose and pick whatever I want. I won't repair anything which is not broken. Same rule, I am going to evaluate my system after completion of all ongoing project. If I find TT has limitation then I am certainly going after them. Till that time - all is well :D
