Diyers looking for these ?

[iaudio]

Hi Kaushik, I am interested in a pair, if it is available.



[kaushik]

iaudio nice to see you again ..yes but in round 2 you will get that

<<7-pairs were reserved>>
1.suraj
2.gopi
3.keith_correa
4.captrajesh
5.vktarun
6.santnai
7.sureshkn

...round 1 is full .
round 2 List
1.iaudio
2.
3.
__



[magma]

i want large ones
4 inch diameter

any chance ?



[keith_correa]

Why would 2 VU meters be needed per amp? It's not as if anyone is going to be using these for monitoring. 2 would just look way cool than 1 per amp but other than that...



[kaushik]

i want large ones
4 inch diameter

any chance ?

Hi magma
these are 6cm dia ,I am not sure they can provide that large

(iam a noob here ) can you recase it with a longer needle and round laser cut acrylic



[kaushik]

Why would 2 VU meters be needed per amp? It's not as if anyone is going to be using these for monitoring. 2 would just look way cool than 1 per amp but other than that...

yes two will do the taking slight differently and that adds to the real magic
one will be like one wheeled motorbike ,saves cost but no one likes it .
Got a pcb maker guy ..see some of the boards he delivered (this is not vu driver) glass epoxy i guess per board 45Rs or so in 20pc batches

picture upload sites

If i send get VUpcbs ,peoples need parts,i to go shopping parts thatz lot of work , if anyone offloads this part all will be benefited



[kaushik]

could not resist to post this after yellow LED fit
yes face is to be adjusted ..they look lovely much better than this phone cam pic ,I have one pair already



[santnai]

Kaushik,

I am in for PCB and parts. Is it possible to get a rectangular VU meter?



[kaushik]

Kaushik,

I am in for PCB and parts. Is it possible to get a rectangular VU meter?

i can send acrylic laser cut front for rectangular ones ..some time is needed
parts pcb i will think

got the delivery
led fitting is remaining
Please pm addresses and i will give account and payment details



[kaushik]

Some info on the VU buffer adjustment :

1kHz sine wave at +4 dBu (1.228 Volts) On the the vu scale needle should read zero

===DONT get scared as a keep it simple principle play some bassy tracks , adjust gain pot to cover the max that all

we are not doing studio recording so that will do fine

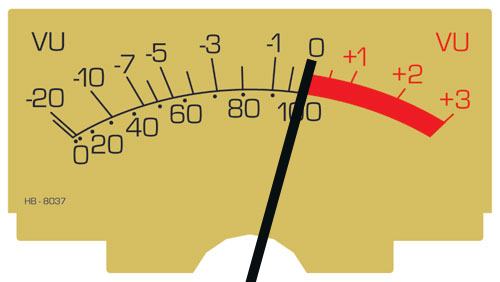

FUN FACT #1: Notice the secondary scale below the -20 to +3 scale. This is a carry over from the old days when Radio Broadcasters used the meter. It represents Percent of Modulation. In order to have the loudest signal available to radio listeners, Broadcasters would try to keep their audio level near 100% modulation mark without going into the red and over-modulating the signal they were broadcasting.
[just dont care markings !! ]



[santnai]

Hi Kaushik,

Amount transferred.



[kaushik]

3members paid ,I got payments
2pairs made ready hope fully will send tomorrow
<<7-pairs were reserved>>
1.suraj
2.gopi--Paid
3.keith_correa-Paid
4.captrajesh
5.vktarun
6.santnai--paid
7.sureshkn

Fitting LED is many fold process
-open the case and measure placement
-prepare short lead LEDs, clear LED with diffused front works best
I sand LEDs so the front light is uniformly diffused
outer part radiates clean yellow light and fills the case
- hot glue to case

- check FSD (fullscale defection on a test signal)
-once free movement ensured the case is closed fully (screws)

How much Light :
I a m supplying with 330E resistors notso intense -not dim glow , User can reduce or add 20-30ohms to do desired glow
LM317 led driver also they can use (be careful to start at low current)



[captrajesh]

Just saw the thread. Has the account details been sent to participants? I didn't receive it. Kindly send account details to all the participants.



[kaushik]

Hi capt ,
I am doing slowly ,
this weekend 2pairs were LED fitted

you can pay after few days i have PMed you .
Next weekend I will do for the other pairs .



[vktarun]

Hi,

Please let me know Payment details for NEFT.

Regards,

Vipin



[kaushik]

status
====
3members paid ,I got payments
1pair Shipped


<<Round-1 List >>
1.suraj
2.gopi--Paid --- Shipped
3.keith_correa-Paid
4.captrajesh
5.vktarun
6.santnai--paid
7.sureshkn

gopi ,
ETA tomorrow
vktarun
PMEd the a/c detail



[gopib]

Got the pair today. All fine. Did some tests...it moves and I'm happy:clapping:
Thanks Kaushik! Wanted a pair for a long time and sometimes things just drop in....Lots more workhyeah:



[kaushik]

gopib,

I also love them true vintage scale and i like the glow after my diy fit ,will wait for your pics of complete build .
how you are driving?it is best to drive from AV lines unsing the buffer but speaker outs also can be used
with this very simple circuit http://www.giangrandi.ch/electronics/vu-meter/vu-meter.shtml(use 10k at last to protect them , they are 50uA)

And i always like to bring DIY items and see people get happy.

Care ful they need very little current 50uA
=============
next 2 pairs : will be shipped tomorrow
=============

Many people asked for full circuit kit ,I will have to get PCBs and parts ..will happen after a little time ...



[sarith]

Taking the freedom of re-posting the link posted by Kaushik as the link he posted seems to have some error (says 'file not found')

A simple passive logarithmic VU-meter



[kaushik]

Taking the freedom of re-posting the link posted by Kaushik as the link he posted seems to have some error (says 'file not found')

A simple passive logarithmic VU-meter

Thank you .. sorry for my typo.
status
====
3members paid ,I got payments
2pair Shipped ,1pair on hold "santnai"

@santnai please PM me phone No


<<Round-1 List >>
1.suraj
2.gopi--Paid --- delivered
3.keith_correa-Paid---Shipped
4.captrajesh
5.vktarun
6.santnai--paid
7.sureshkn
