Glad you are having music again and appreciate your dedication and commitment. Really gutsy hacking on the increasingly rare ARU -- I should've known you'd find Goodmans employees to talk to!
My new system
- Thread starter prem
- Start date
Beautiful ! You are enticing me to build a prototype and try some fine drivers I have.
Possible to share the build plans if it’s not copyrighted or something ?

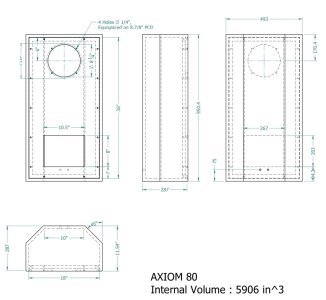

Yogibear, Sadik has the diagram. I had only given the build plans to him. He can share it with you. I don’t have the diagram. You can reach out to him. Nothing secretive about it.

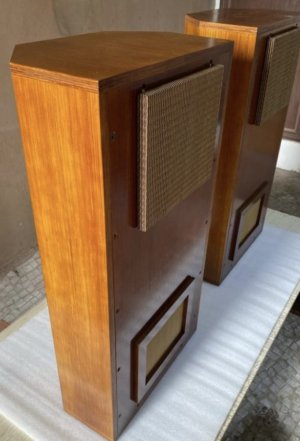

This cabinet is designed specifically by Goodman for the Axiom 80 driver. They designed cabinets specific to each driver they manufactured. Also the ARU design is specific to each driver. So am not sure if it’s a universal design where you can fit any driver. But if you wish you can try FWIW.
This cabinet is designed specifically by Goodman for the Axiom 80 driver. They designed cabinets specific to each driver they manufactured. Also the ARU design is specific to each driver. So am not sure if it’s a universal design where you can fit any driver. But if you wish you can try FWIW.
Last edited:
The Axiom 80 is a very high compliance, high Vas and low resonance driver which is suitable for this type of box design which is aperiodic. You can succeed only if your TS parameters are similar.

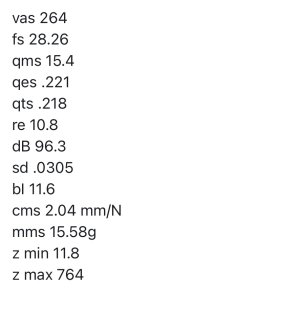

Above is T&S parameters of Axiom 80 that someone measured and put it up on another forum. No idea if they are accurate.
From what I have read, Ted Jordan, the designer of Axiom 80, did not believe in T & S parameters.
From what I have read, Ted Jordan, the designer of Axiom 80, did not believe in T & S parameters.
Yes, been reading about them recently.
Gerry_the_Merry
Well-Known Member
Awesome, Prem. Must listen sometime!
We had also done for the Aperiodic box too Prem. The Aperiodic box showed significant bass lift compared to the OB design.
If you are saying we did, I am sure we must have. But I don’t remember what the graphs looked like.
This driver behaves very very differently from any other driver I have heard. There’s an immediacy that’s uncanny. So I don’t know how much of the conventional simulations work with this driver. As I had mentioned earlier, Ted Jordan doesn’t believe in T & S parameters. The driver has no surrounds and has free edged suspension. I don’t know of any other driver that follows this design. At least for the Axiom 80, I wouldn’t bother too much with the simulations.
It’s sounding good in his box design. I presume he knew what he was doing. The challenge I think is to retain the strengths of the driver and still have decent bass. And that’s kind of what his aperiodic vented box does. Even the vent is designed by him and is specific to the driver. It’s patented. When I read the patent, is when I realised it’s best to buy his designed ARU only. And not try to replicate it.
But Hari, it was fun doing those simulations and getting some idea of what could happen. Thanks Hari for taking the time out and doing all those simulations.
This driver behaves very very differently from any other driver I have heard. There’s an immediacy that’s uncanny. So I don’t know how much of the conventional simulations work with this driver. As I had mentioned earlier, Ted Jordan doesn’t believe in T & S parameters. The driver has no surrounds and has free edged suspension. I don’t know of any other driver that follows this design. At least for the Axiom 80, I wouldn’t bother too much with the simulations.
It’s sounding good in his box design. I presume he knew what he was doing. The challenge I think is to retain the strengths of the driver and still have decent bass. And that’s kind of what his aperiodic vented box does. Even the vent is designed by him and is specific to the driver. It’s patented. When I read the patent, is when I realised it’s best to buy his designed ARU only. And not try to replicate it.
But Hari, it was fun doing those simulations and getting some idea of what could happen. Thanks Hari for taking the time out and doing all those simulations.
Last edited:
Ok. Have you done any FR measurements or planning to do one?
What a speaker the Axiom 80 is. It picks up all the nuances and the feel of a song like no other speaker I have owned or heard in my life. It doesn’t go as low as the JBL but you don’t miss it. I feel once fully broken in it will go down to 45 hz. But what it plays within its bass limitations is extraordinary. No wonder Vladimir Lamm called it the best driver ever designed.
