My Setup Linn Majik 109 Aktiv

Wharfedale EVO4.1 Bookshelf Speakers

navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Bought it as a passive setup along with Majik-I and Majik-DS and upgraded to Aktiv after 2 years by adding Crossover Cards and Majik4100 amplifier.
I have two Linn Silver ICs connecting my amps and Majik DS and Three sets of Quiyeyuan Speaker Cables With Factory terminated Z Banana Plugs connecting my amp and speakers which are tri wired and tri amped. Each driver driven separately through different channels.
Now I play my Majik LP12 Turntable on my Majik109 bookshelves which are Aktively driven.
The difference in sound is really outstanding, the soundstage has improved largely and Bass is also improved substantially.
The upgrade has brought in a new life into the system.


Sent from my iPhone using Tapatalk


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
It's like ghoonghat placed on a dulhan...ha ha ha
Just joking. I cover them with a velvet cloth when not in use to avoid any kind of dust accumulation on the tweeter and mid/bass drivers


Sent from my iPhone using Tapatalk

Joined
Feb 25, 2012
Messages
51
Points
8
Location
Sharjah, United Arab Emirates
It's like ghoonghat placed on a dulhan...ha ha ha
Just joking. I cover them with a velvet cloth when not in use to avoid any kind of dust accumulation on the tweeter and mid/bass drivers


Sent from my iPhone using Tapatalk
Oh Okay, those more then a Dulhan for us audio nuts - LOL

where you bought those speaker cables and how much you paid for them? I currently have K400, and its so bulky and wanting to change..

cheers.


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
The speaker cables are Chinese make were bought from HK. These are thicker & bulkier than K400. You can order Linn K200, it costs 23.00 ex-tax per metre, termination with QED AirLoc plugs 5.25 per plug extra from UK. K200 is round and neater.


Sent from my iPhone using Tapatalk


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Bought it as a passive setup along with Majik-I and Majik-DS and upgraded to Aktiv after 2 years by adding Crossover Cards and Majik4100 amplifier.
I have two Linn Silver ICs connecting my amps and Majik DS and Three sets of Quiyeyuan Speaker Cables With Factory terminated Z Banana Plugs connecting my amp and speakers which are tri wired and tri amped. Each driver driven separately through different channels.
Now I play my Majik LP12 Turntable on my Majik109 bookshelves which are Aktively driven.
The difference in sound is really outstanding, the soundstage has improved largely and Bass is also improved substantially.
The upgrade has brought in a new life into the system.


Sent from my iPhone using Tapatalk






Sent from my iPhone using Tapatalk


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Oh Okay, those more then a Dulhan for us audio nuts - LOL

where you bought those speaker cables and how much you paid for them? I currently have K400, and its so bulky and wanting to change..

cheers.


What is your setup


Sent from my iPhone using Tapatalk


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai

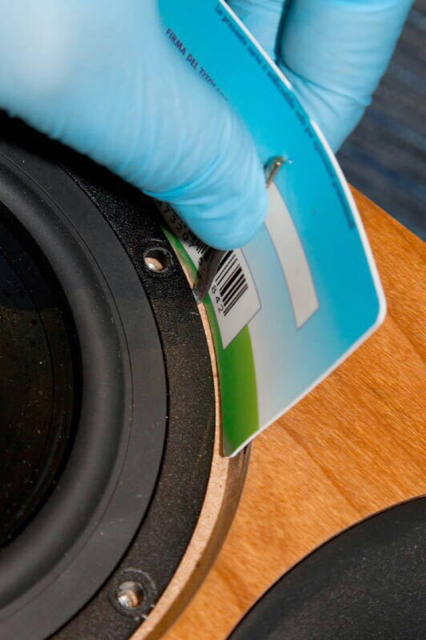

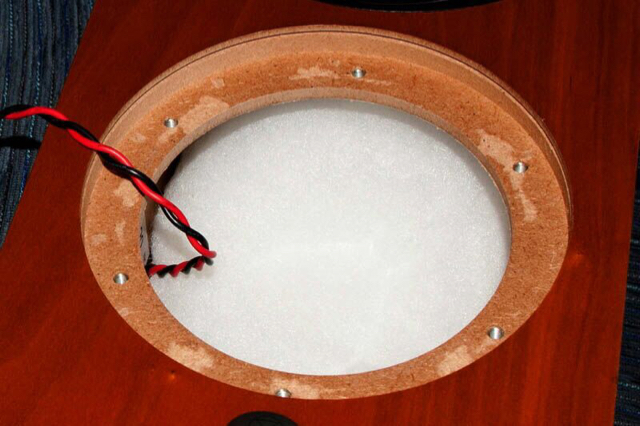

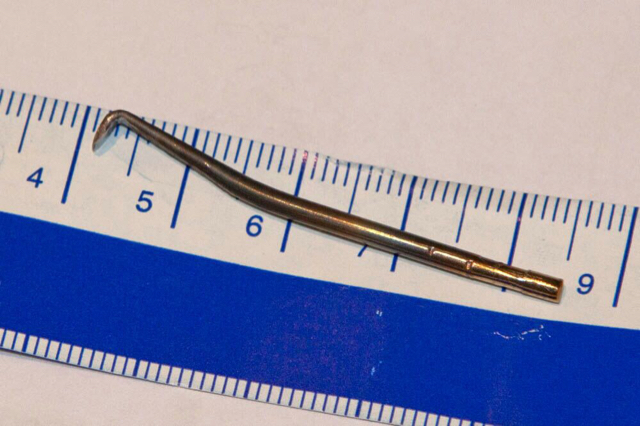

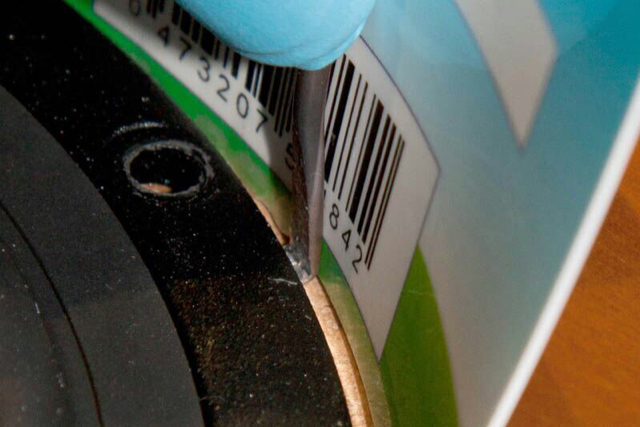

Those Pics are about the way you have to go from Passive to Aktiv. You need to open the driver carefully and change the setting in the crossover cards from Passive to Aktiv as shown in the picture.


EnvyRao
Mumbai
Linn M109 Aktiv, Linn M-I, Linn M4100, Linn-MLP12, Linn M-DS, Linn Silver IC, CHAKT74-75-76, QNAP212P

Sent from my iPhone using Tapatalk

Joined
Feb 25, 2012
Messages
51
Points
8
Location
Sharjah, United Arab Emirates
Oh, I was just thinking that you will have to pop-in the aktive cards into the amp. ( as I have done to my 512 and changed the plate config. on the speakers) this is new for me, did you do it yourself or got it done by the Linn dealer?

Tq
Pramod

Joined
Feb 25, 2012
Messages
51
Points
8
Location
Sharjah, United Arab Emirates
Oh, I was just thinking that you will have to pop-in the aktive cards into the amp. ( as I have done to my 512 and changed the plate config. on the speakers) this is new for me, did you do it yourself or got it done by the Linn dealer?

Tq
Pramod


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Yes done it myself. Regards


EnvyRao
Mumbai
Linn M109 Aktiv, Linn M-I, Linn M4100, Linn-MLP12, Linn M-DS, Linn Silver IC, CHAKT74-75-76, QNAP212P

Sent from my iPhone using Tapatalk


sunder

Active Member
Joined
Aug 12, 2009
Messages
667
Points
43
Location
india
Those Pics are about the way you have to go from Passive to Aktiv. You need to open the driver carefully and change the setting in the crossover cards from Passive to Aktiv as shown in the picture.


EnvyRao
Mumbai
Linn M109 Aktiv, Linn M-I, Linn M4100, Linn-MLP12, Linn M-DS, Linn Silver IC, CHAKT74-75-76, QNAP212P

Sent from my iPhone using Tapatalk
navinrao33, if it's active, is there any power transformers inside? Which couldn't be seen in your photos?, please post some pics for the back side views. Are these brand new pair? How much the price? Thanks.


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
navinrao33, if it's active, is there any power transformers inside? Which couldn't be seen in your photos?, please post some pics for the back side views. Are these brand new pair? How much the price? Thanks.


To make the speakers Aktiv, you have to change the crossover setting Aktiv from Passive. There are additional matching cards which are available for the speaker which are fixed in the Amp for each channel. This BS speaker costs around 1000 stands are additional. These are three way speakers and have Super tweeter, Tweeters and Mid/bass drivers. Each driver is connected separately through 6 channel Amp as shown in pic
. Crossover Aktiv Card costs 90 per card, these speakers requires in all six cards, which are placed in a six channel Amp. These speakers were acquired from brand new from a Dealer who shut shop 3 years back And Aktiv cards were bought from U.K. Recently


EnvyRao
Mumbai
Linn M109 Aktiv, Linn M-I, Linn M4100, Linn-MLP12, Linn M-DS, Linn Silver IC, CHAKT74-75-76, QNAP212P

Sent from my iPhone using Tapatalk


Ferdy Durke

New Member
Joined
Nov 3, 2019
Messages
1
Points
1
Location
Madrid
Hi, EnvyRao

hoping there's still life in this old thread as I need your assistance in the same affaire.
I'm driving a pair of 109 with 6100 & 6 aktiv cards; got them in exchange for my Espek, active as well with the same amp and of course different cards. My problem is that I just don't remember, wether my Linn Dealer did change the crossover setting in the 109 to active when we agreed in the exchange.
Can you or can anyone else tell me which of the provided pictures of the crossover shows the active setting: the one above or the one below?

Thanx a lot!
Ferdy


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Hi Ferdy!
Apologies for a very late response.
The first image consists of passive and second is of an Aktiv setup.
Regards,


navinrao33

Member
Joined
Feb 9, 2016
Messages
52
Points
8
Location
Mumbai
Hello Bala!
The Linn set up is my second setup at home.
The crossover cards are placed on the amplifier like the Hec Cards in DSP. There are 6 separate crossover cards for each channel and we by pass the crossover placed on the speakers and each separate connection from the six channel amp goes to the super tweeter, tweeter and the mid base of left and right channel.
The crossover frequency & slope is fixed on the amp as required by the super tweeter, tweeter and the mid base. We dont have to modify it.
Regards,
Navin
