maverick101
New Member
I am trying to a 3 way box, monitor style box, vented enclosure.
Please, can any one help how to deal with it, do i need to keep the cone excrusion under Xmax till the last end or what?

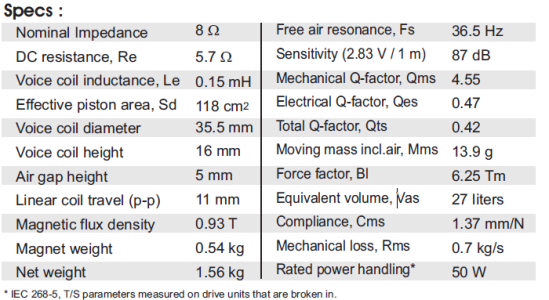

SB Acoustics SB17NRX2C35-8 6'' ( Fs 36.5 Hz, Qes=0.47, Qms=4.55, Qts=0.42)

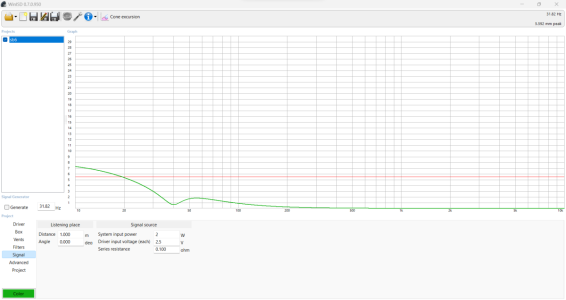

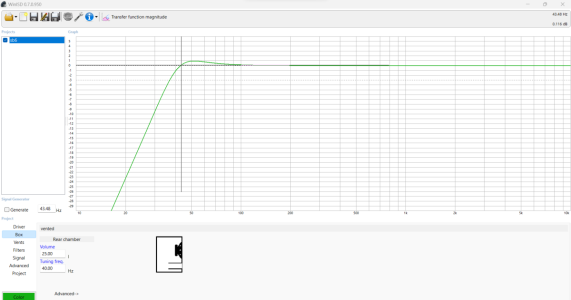

its rated for 50W RMS, and in Winisd, i got a 25 L @ FB 40 Hz, but after puting anything above 2W in signal, the cone excrusion is exceeding, the Xmax ie 5.5mm and from what i have read Linear excrusion is Xmax*2 and in specs sheet, its given Linear coil travel (p-p)= 11mm.Please, can any one help how to deal with it, do i need to keep the cone excrusion under Xmax till the last end or what?
Attachments
Last edited:
