Connecting Yamaha WXC-50 to Denon PMA1520ae

Wharfedale Speakers

srijith

Member
Joined
Nov 16, 2011
Messages
93
Points
8
Location
Thane
Hi Hi-fi enthusiast,

After a lot of research have finally settled down on my integrated audio setup which fits within my budget, the setup will be pairing music streamer yamaha wxc-50 with Denon PMA1520ae. I would like to hear your expert suggestions on the below queries.

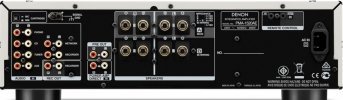

1) Yamaha WXC can be switched between "player" and "preamplifier" mode. If I switch it to "player" mode, the unit will outputs audio at maximum volume, additionally the volume is disable on the unit. So can I connect the pre out of the Yamaha unit to the AUX in of Denon since I assume there is no preamplification done on Yamaha or shall I input pre out to Denon's "Power Amp Direct In"(This will bypass the preamplification of the Denon's circuit).

Basically want Yamaha to be just a streamer and not a preamplifier

Any suggestion please




Beast_of_burden

Active Member
Joined
Jun 14, 2011
Messages
283
Points
43
Location
Bangalore
Great choice of amplifier. Set the streamer to player mode. In my experience, the Denon works best with its own preamplifier.

You can try either approach and see which sounds better, assuming you have no other sources.


KNRAMU

Active Member
Joined
Feb 16, 2020
Messages
107
Points
28
Location
Ballari
I have Yamaha WXC-50 streamer which in Player mode connected to my DD Pre Amplifier sounds better then the Pre amp mode. But one drawback is losing volume control from remote & Musiccast app in this mode, in your case volume can be controlled from the Denon's remote controller.


srijith

Member
Joined
Nov 16, 2011
Messages
93
Points
8
Location
Thane
I have Yamaha WXC-50 streamer which in Player mode connected to my DD Pre Amplifier sounds better then the Pre amp mode. But one drawback is losing volume control from remote & Musiccast app in this mode, in your case volume can be controlled from the Denon's remote controller.
How did you connect your streamer in the player mode..using the pre out to amplifiers AUX in?


srijith

Member
Joined
Nov 16, 2011
Messages
93
Points
8
Location
Thane
Great choice of amplifier. Set the streamer to player mode. In my experience, the Denon works best with its own preamplifier.

You can try either approach and see which sounds better, assuming you have no other sources.
Yes will try both the approach one with "preamp" mode and the other with pure "player" mode


KNRAMU

Active Member
Joined
Feb 16, 2020
Messages
107
Points
28
Location
Ballari

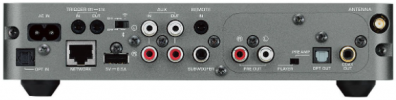

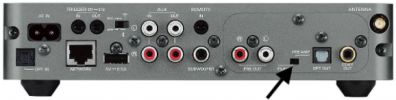

There is a mode selector switch for this purpose placed in between pre out and optical out ports. Please read the instructions, the switch should be operated/switched when unit power cord disconnected from the wall socket. 1624615504330.png

Last edited:

srijith

Member
Joined
Nov 16, 2011
Messages
93
Points
8
Location
Thane
The best thing with Yamaha is i can use my existing speaker setup by pairing kefq300 to denon and active subwoofer to yamaha..this way i can use my sub else would have been very difficult to get bass out of kefq300 using just the denon
