Dual shielded 3 core 4mm sq power cable

[balavignesh002]

I always thought of doing a very good quality DIY power cable. Out of all my cable builds this is the easiest one unless I make it more complex one.

After looking around for good quality shielded power cables, I understand this is going to be costlier than speaker cables what I did diy earlier.

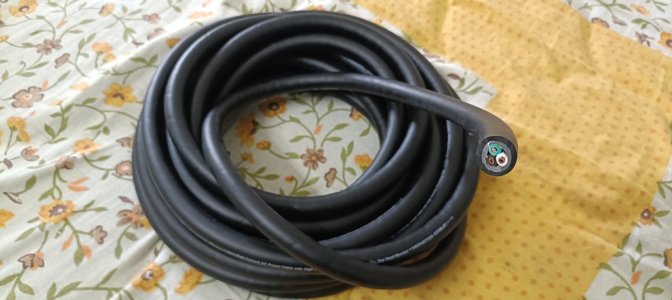

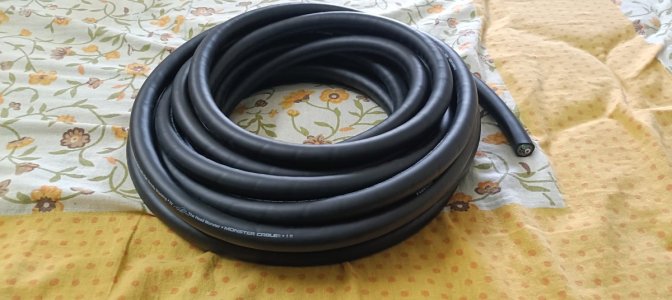

Finally decided to import the below cable of 10 meters length. It's Monster signature series with lead Aluminium foil as outer shield and braided copper as internal shield. The cable is 15mm on diameter.



[vbutani]

Please share your feedback and the link if possible, thanks



[Thirumalkumaran]

I'm curious to know what plug you are planning to use with it. Share the details of it as well please.



[balavignesh002]

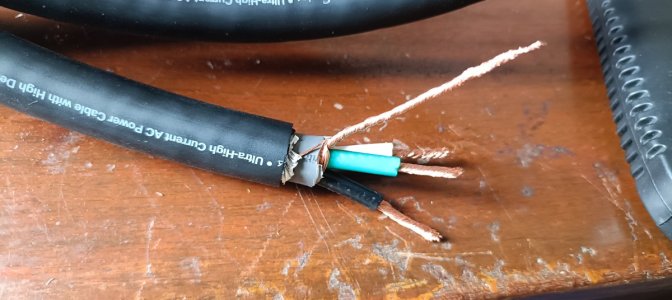

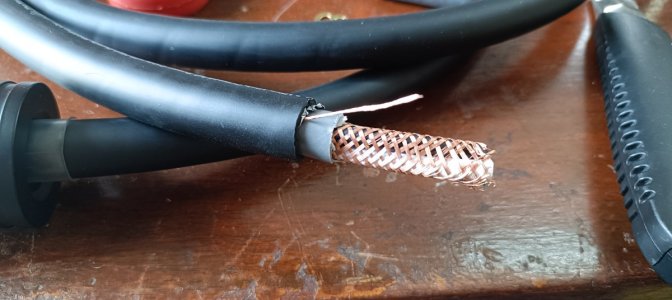

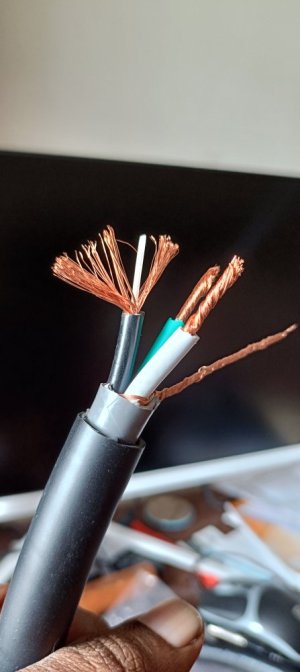

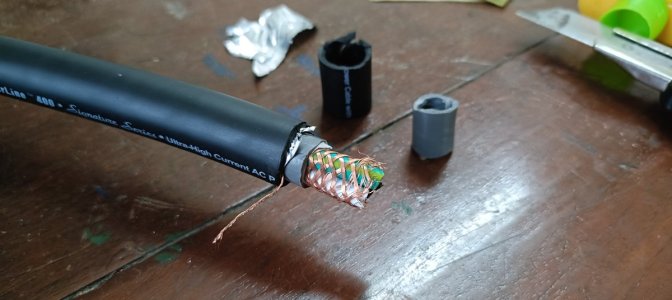

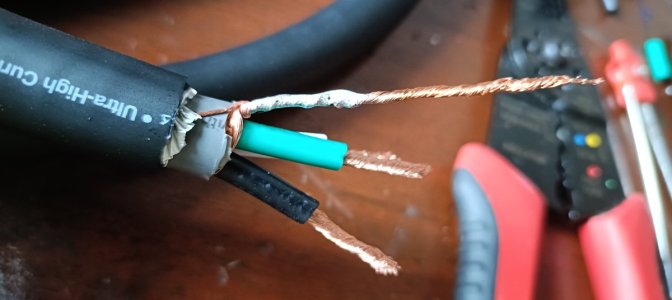

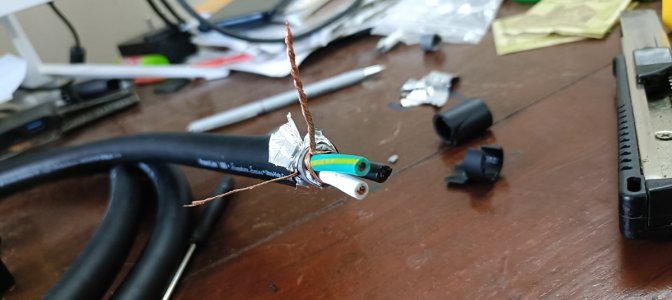

This cable is 15 mm diameter, outer is soft silicone jacket, followed by lead Aluminium foil with a drain wire, then grey pvc jacket followed by a copper braiding then 3 x 4mm copper conductor with FR insulation.

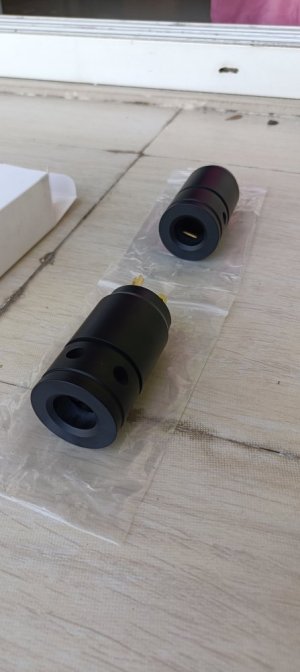

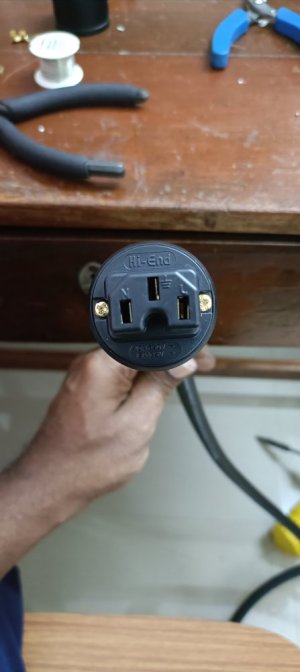

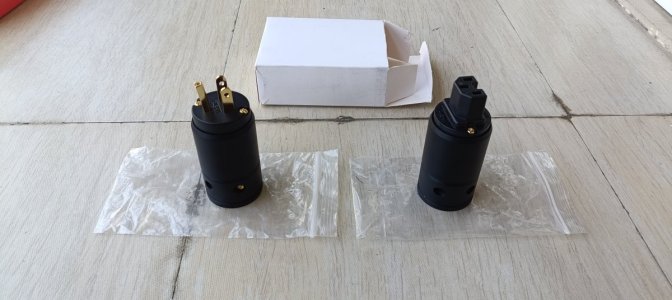

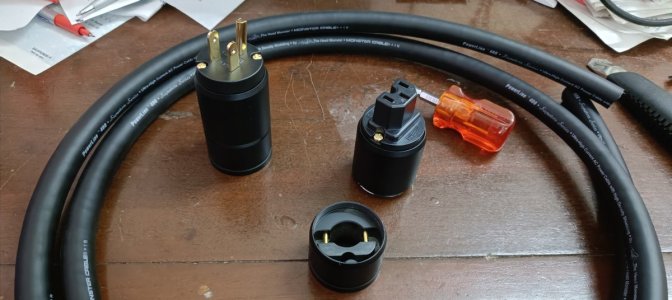

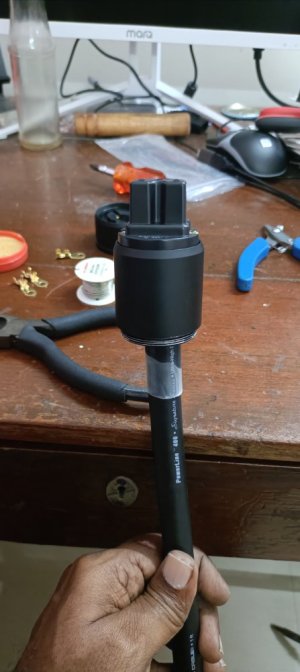

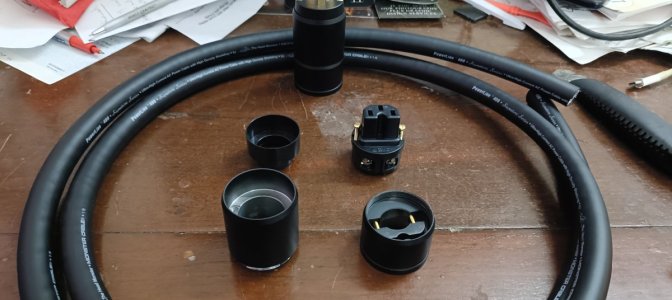

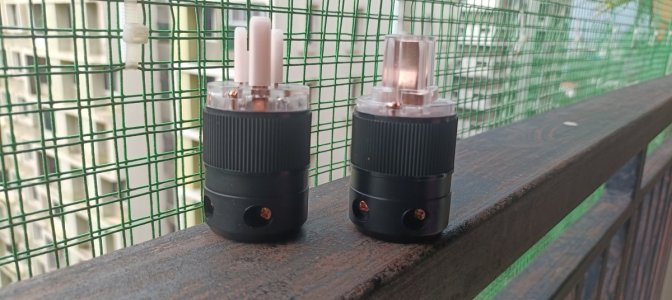

Planing to use to use gold plated pure copper with aluminium shielded US and IEC connector this ca accept up to 20 mm cable.

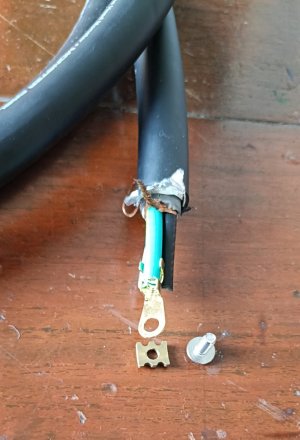

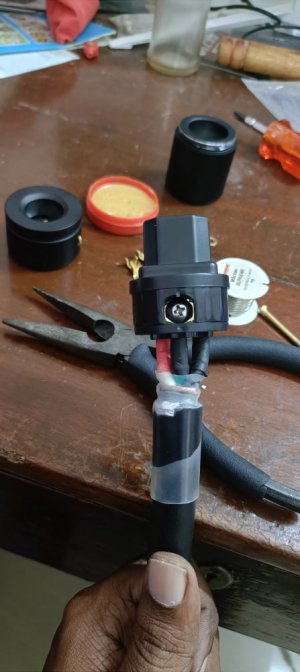

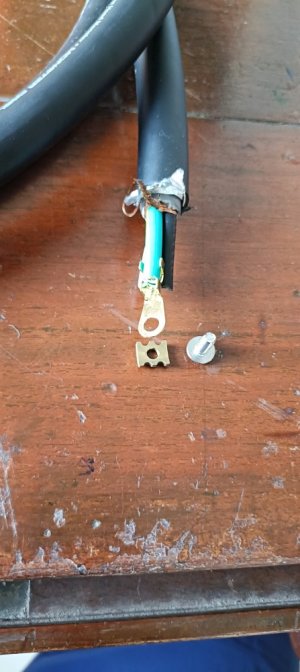

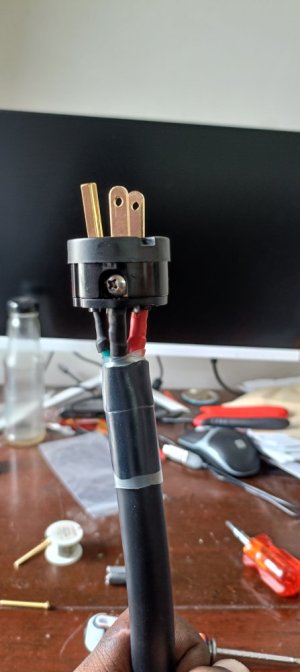

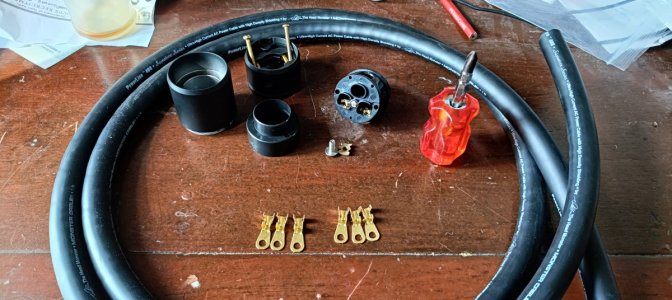

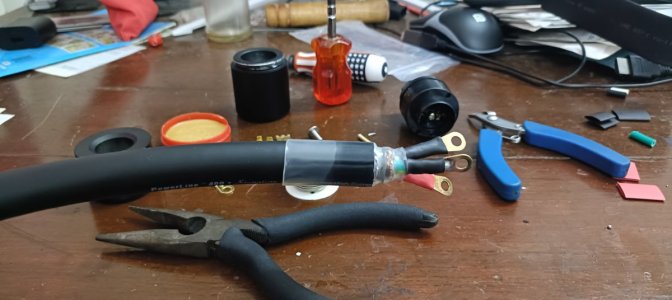

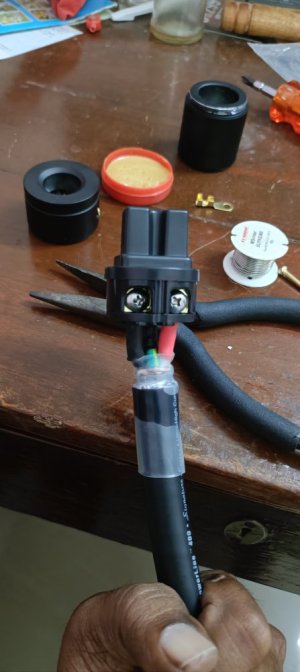

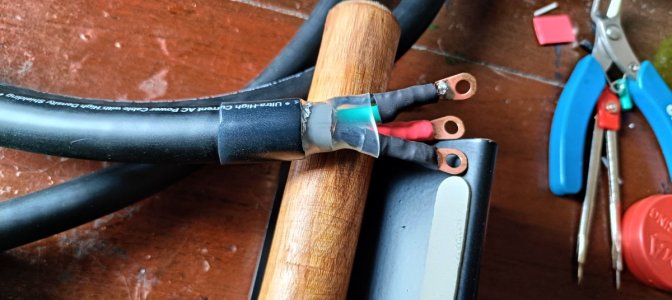

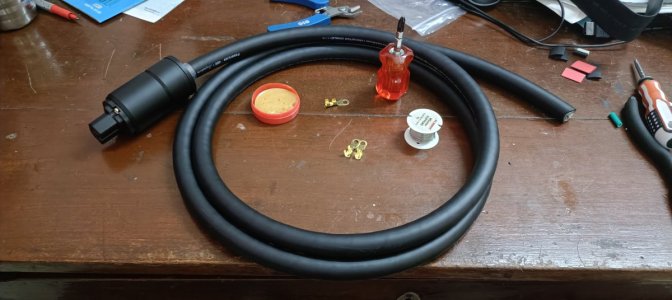

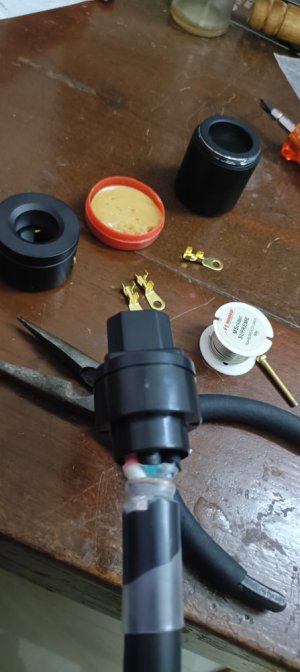

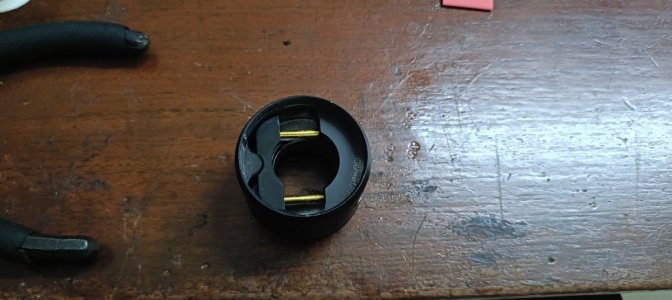

This socket will be good to connect with cables on ring terminal i assume. Let me think through it, have ordered for ring terminal connectors. Will post further updates.



[balavignesh002]

I'm curious to know what plug you are planning to use with it. Share the details of it as well please.

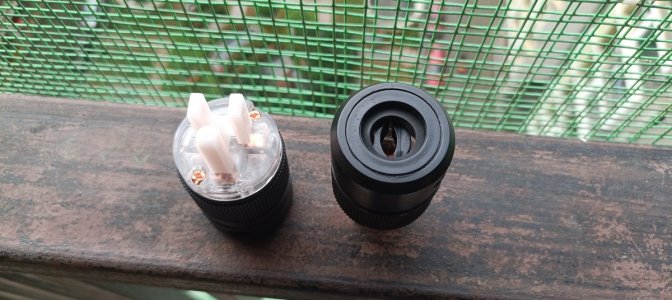

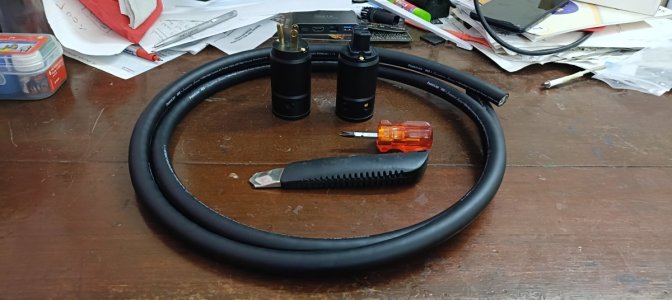

It's a 15 mm dia cable, I have the below 2 options. What do you suggest?
