DIY LCD Screen For Raspberry PI using Hitachi hd44780 Controller

[mbhangui]

This is just a project to demonstrate fun thing that you can do with a cheap 20x4 or 16x2 LCD displays which use the Hitachi HD44780 controller. The Hitachi HD44780 LCD controller is an alphanumeric dot matrix liquid crystal display (LCD) controller developed by Hitachi in the 1980s. The character set of the controller includes ASCII characters, Japanese Kana characters, and some symbols in two 40 character lines. Using an extension driver, the device can display up to 80 characters. Numerous third-party displays are compatible with its 16-pin interface and instruction set, making it a popular and cheap LCD driver. This display with the controller costs less than Rs 300 on amazon. Just search for 20x4 lcd on amazon dot in and you will get many listings.

In this tutorial I'm going to detail both the software and hardware installation along with the wiring details on how to connect the lcd to your raspberry Pi. The software involves installing my LCD daemon which I just finished writing today and I have released it as open source on github. LCD Daemon interfaces with the LCD display and accepts text to be displayd on the display from any host on the network. If you have a streamer like moode, volumio, your own you can display the song, album. artist, etc get displayed on the LCD display without physically connecting this lcd display to your streamer. The LCD display accepts either a UDP packet from anywhere to port 1806 or one can use the shell command to simply echo the message to a named pipe. The text can be sent from any machine regardless of the OS. As long as you can send a UDP packet to port 1806 to any IP address, the message will get displayed. In the example below my macbook is sending the song being played to the LCD display. The LCD display is highly configurable. You can tell it which pin of the raspberry PI is connected to which pin on the LCD display and it will configure itself accordingly. But for the purpose of this demo, I'm going to wire it as per my convenience.

This LCD has 8 data pins. One can use them in 8 bit mode where all the 8 pins are used for data or 4 bit mode where we use only 4 of the 8 pins. I will be demonstrating how to use just 4 pins of the raspberry pi so that rest of the pins can be used for example connecting a sound card, etc.

What you need

1) RPI with OS installed
2) Jumper wires like this. You actually just need 16 jumper wires
3) One potentiometer 10 k for contrast control
4) 20x4 lcd display

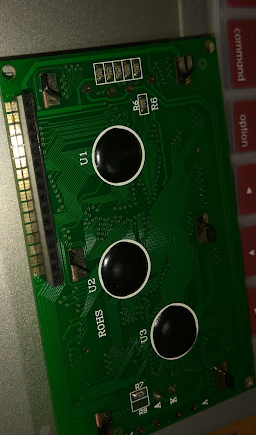

5) Female berg strip like this. You will have to break the berg strip so that you have 16 terminals. Then insert the berg strip with 16 terminals into the LCD display and solder them. This is a photo of the LCD display with the berg strip soldered on the back side. You can solder it on the front instead also.


Wiring

Raspberry PI has the GPIO header and the LCD has 16 pins. Both are shown below. First is the RPI GPIO header pinout and below that is the pinout for the LCD display

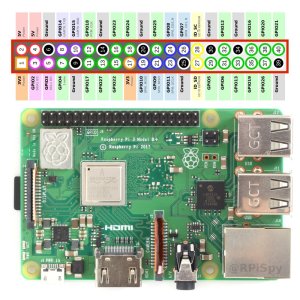

1. Raspberry PI GPIO Header pinout

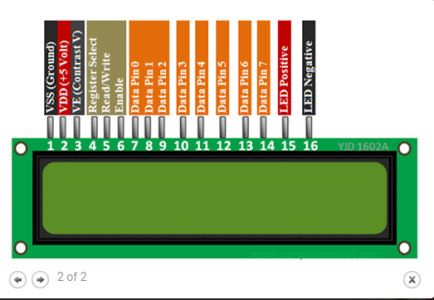

2. 20x4 LCD pinout



Now Let us wire the LCD display to Raspberry PI. You will need jumper wires. The table below ilustrates which wire on the RPI to connect to which pin. e.g.

Connect pin 1 on the lcd to pin 6 on RPI - This is the ground
Connect pin 2 on the LCD to pin 2 on RPI - This is +5v
Conect a potentiometer with the outer pins to Ground and +5 v. Connect the middle pin of the potentiometer to pin 03 of the LCD display
Connect pin 4 to pin 22 on the RPI
Connect pin 5 to the ground
Connect pin 6 to pin 18 on the RPI
Connect pin 11 to pin 16 on the RPI
Connect pin 12 to pin 11 on the RPI
Connect pin 13 to pin 13 on the RPI
Connect pin 14 to pin 15 on the RPI
Connect pin 15 to pin 2 on the RPI - This is +5v
Connect pin 16 to pin 9 on the RPI - This is the ground

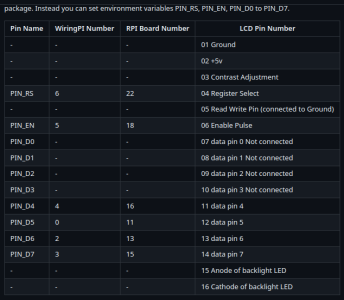

Table: Wiring Details for connecting LCD display to RPI


Software

These are the URLS for the sotware and the binary debian package. You just need to install my lcd daemon and that will pull the libwiring pi dependency.

1. The wiringPi library. Controlling this lcd requires wiring pi library which was written by Gordon Henderson. This is a very popular library and the library became the foundation for other languages in python, php, ruby, perl and node.js - https://github.com/WiringPi/WiringPi
2. The lcd daemon. This has been written by me. It needs to be installed on the raspberry pi which has the LCD display connected. This accepts messages to be written to the display locally using the pilcd command or from the network on UDP port 1806. - https://github.com/mbhangui/lcd-daemon
3. The open Build Service repo at https://build.opensuse.org/package/show/home:mbhangui:raspi/lcd-daemon

Installation
Installtion is very simple. You just need to follow the following instructions by execting the below 4 commands. The First two commands installs the open build service repository from openSUSE. Open Build Service is a free service that allows developers to build RPM, Debian and archlinux packages for free and host the binary packages.

echo 'deb http://download.opensuse.org/repositories/home:/mbhangui:/raspi/Raspbian_11/ /' | sudo tee /etc/apt/sources.list.d/home:mbhangui:raspi.list
curl -fsSL https://download.opensuse.org/repositories/home:mbhangui:raspi/Raspbian_11/Release.key | gpg --dearmor | sudo tee /etc/apt/trusted.gpg.d/home_mbhangui_raspi.gpg > /dev/null
sudo apt update
sudo apt install lcd-daemon

After installation you should see the text "Display Initialized" on the LCD display. Now you can print any text on this display like this. Here are few examples

Display text locally on the first row

pilcd -r 0 How are you

Display text locally on the second row

pilcd -r 1 how are you

Display text locally on the third row

pilcd -r 2 how are you

Scroll text on the fourth row

pilcd -s -r 2 Displaying text on this LCD is fun

You can also use the echo command. The below command prints Hi from local on the lcd display

echo 1 0 0:Hi from local > /run/lcd-daemon/lcdfifo

Let us say the IP address of this RPI is 192.168.1.100. Then you can send messages to be printed from any host on the network like this

echo 1 0 0:Hi from local > /run/lcd-daemon/lcdfifo

If you install my mpdev package on your streamer it will display the song information being played remotely on the raspberry pi having the LCD display like shown in the below picture. mpdev can be installed by the following (provided you have enabled my open build service repository)

apt-get install mpdev

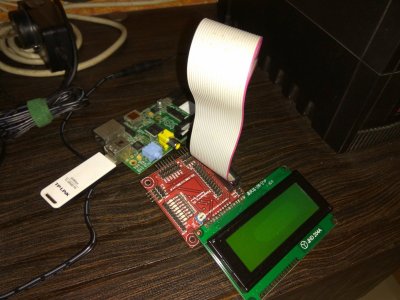

This is my second version minus the jumper wires. I used a ready-made board that can be connected the the RPI via a ribbon cable

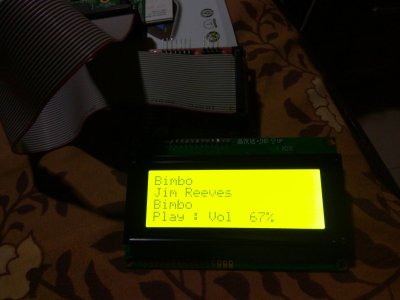

This is the raspberry pi display text that was sent to it from a remote streamer (my macbook) playing Jim Reeves Bimbo Bombo

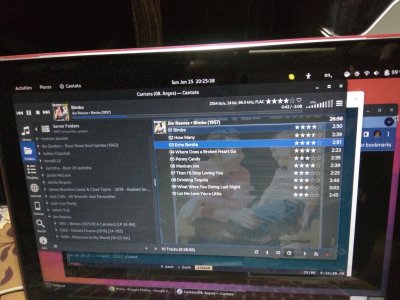

This is the my macbook playing Bimbo Bimbo by Jim Reeves and the song information is being displayed remotely on the Raspberry PI which has the LCD display connected



[RtoR King]

Things sure have changed for the better. When I started using LCD and VFD displays to micro controllers, over 20 years ago, you had to write your own drivers. Fortunately by that time we had C compilers for most micro controllers. Before that you had to write in assembly language!

Here's my latest iteration . Copy at will.

/* lcd.c */
/* driver for most LCD displays */

static unsigned char lcd_cur_loc;

void lcd_instr(unsigned char d)
{
LCD_DATA= d;
LCD_CNTL= 0x0;
LCD_CNTL= 0x1;
delay(LCD_DLY);
LCD_CNTL= 0x0;
}

void lcd_char(unsigned char c)
{
LCD_DATA= c;
LCD_CNTL= 0x4;
LCD_CNTL= 0x5;
delay(LCD_DLY);
LCD_CNTL= 0x4;
}

void lcd_init(void)
{
lcd_instr(0x30); // 8 bit, 100% brite
lcd_instr(0x6); // entry mode
lcd_instr(0x1); // clear display
lcd_instr(0xF); // display on, cursor on, blink on
lcd_instr(0xC); // display on, cursor on, blink off
}

void lcd_set_bright(unsigned char b)
{
lcd_instr(0x30);
lcd_char(b);
}

void lcd_cursor(unsigned char n)
{
switch (n) {
case 0:
lcd_instr(0xC); // display on, cursor off, blink off
break;
case 1:
lcd_instr(0xF); // display on, cursor on, blink on
break;
case 2:
lcd_instr(0xE); // display on, cursor on. blink off
break;
default:
break;
}
}

void lcd_pos_cur(unsigned char x, unsigned char y)
{
lcd_instr(0x80 + ((y - 1) * 0x40) + (x - 1)); // 00h to 27h = line 1, 40h to 67h = line 2
lcd_cur_loc= (((y - 1) * 0x40) + x);
}

void lcd_disp_str(char *c)
{
while (*c != 0)
lcd_char(*(c++));

}
/*
void lcd_flash_str(unsigned char n)
{
unsigned char c,i;

i= 0;
c= 0xFF;
while (c != 0) {
c= (flash_text_strings[n][i++]);
if (c != 0)
lcd_char(c);
}
}
*/
void lcd_clr_line(unsigned char l) // 1= line 1, 2= line 2
{
unsigned char n;

lcd_pos_cur(1,l);
for (n= 1; n<= LCD_CPL; n++)
lcd_char(0x20);
}

void lcd_clr_disp(void)
{
lcd_instr(0x1);
delay(50);
}



[mbhangui]

Things sure have changed for the better. When I started using LCD and VFD displays to micro controllers, over 20 years ago, you had to write your own drivers. Fortunately by that time we had C compilers for most micro controllers. Before that you had to write in assembly language!

Here's my latest iteration . Copy at will.

/* lcd.c */
/* driver for most LCD displays */

static unsigned char lcd_cur_loc;

void lcd_instr(unsigned char d)
{
LCD_DATA= d;
LCD_CNTL= 0x0;
LCD_CNTL= 0x1;
delay(LCD_DLY);
LCD_CNTL= 0x0;
}

void lcd_char(unsigned char c)
{
LCD_DATA= c;
LCD_CNTL= 0x4;
LCD_CNTL= 0x5;
delay(LCD_DLY);
LCD_CNTL= 0x4;
}

void lcd_init(void)
{
lcd_instr(0x30); // 8 bit, 100% brite
lcd_instr(0x6); // entry mode
lcd_instr(0x1); // clear display
lcd_instr(0xF); // display on, cursor on, blink on
lcd_instr(0xC); // display on, cursor on, blink off
}

void lcd_set_bright(unsigned char b)
{
lcd_instr(0x30);
lcd_char(b);
}

void lcd_cursor(unsigned char n)
{
switch (n) {
case 0:
lcd_instr(0xC); // display on, cursor off, blink off
break;
case 1:
lcd_instr(0xF); // display on, cursor on, blink on
break;
case 2:
lcd_instr(0xE); // display on, cursor on. blink off
break;
default:
break;
}
}

void lcd_pos_cur(unsigned char x, unsigned char y)
{
lcd_instr(0x80 + ((y - 1) * 0x40) + (x - 1)); // 00h to 27h = line 1, 40h to 67h = line 2
lcd_cur_loc= (((y - 1) * 0x40) + x);
}

void lcd_disp_str(char *c)
{
while (*c != 0)
lcd_char(*(c++));

}
/*
void lcd_flash_str(unsigned char n)
{
unsigned char c,i;

i= 0;
c= 0xFF;
while (c != 0) {
c= (flash_text_strings[n][i++]);
if (c != 0)
lcd_char(c);
}
}
*/
void lcd_clr_line(unsigned char l) // 1= line 1, 2= line 2
{
unsigned char n;

lcd_pos_cur(1,l);
for (n= 1; n<= LCD_CPL; n++)
lcd_char(0x20);
}

void lcd_clr_disp(void)
{
lcd_instr(0x1);
delay(50);
}

Thank you. I'm going to copy few of the functions in my library. Just one question. What is the value of LCD_DLY?



[RtoR King]

Thank you. I'm going to copy few of the functions in my library. Just one question. What is the value of LCD_DLY?

It's just a simple "for n to n" delay loop that does not use a timer. So it's clock speed dependent. The LCD data sheets will show the required setup timing or or can just reduce the value until you get errors, the add a fudge factor. The proper way would be to check if the display is ready then send data. But I find this cheat to works quite well.



[mbhangui]

It's just a simple "for n to n" delay loop that does not use a timer. So it's clock speed dependent. The LCD data sheets will show the required setup timing or or can just reduce the value until you get errors, the add a fudge factor. The proper way would be to check if the display is ready then send data. But I find this cheat to works quite well.

Yes. I figured that out. I have reduced it to around 50 microseconds and it works. Will try to reduce it further.



[vinaymoturi]

This is just a project to demonstrate fun thing that you can do with a cheap 20x4 or 16x2 LCD displays which use the Hitachi HD44780 controller. The Hitachi HD44780 LCD controller is an alphanumeric dot matrix liquid crystal display (LCD) controller developed by Hitachi in the 1980s. The character set of the controller includes ASCII characters, Japanese Kana characters, and some symbols in two 40 character lines. Using an extension driver, the device can display up to 80 characters. Numerous third-party displays are compatible with its 16-pin interface and instruction set, making it a popular and cheap LCD driver. This display with the controller costs less than Rs 300 on amazon. Just search for 20x4 lcd on amazon dot in and you will get many listings.

In this tutorial I'm going to detail both the software and hardware installation along with the wiring details on how to connect the lcd to your raspberry Pi. The software involves installing my LCD daemon which I just finished writing today and I have released it as open source on github. LCD Daemon interfaces with the LCD display and accepts text to be displayd on the display from any host on the network. If you have a streamer like moode, volumio, your own you can display the song, album. artist, etc get displayed on the LCD display without physically connecting this lcd display to your streamer. The LCD display accepts either a UDP packet from anywhere to port 1806 or one can use the shell command to simply echo the message to a named pipe. The text can be sent from any machine regardless of the OS. As long as you can send a UDP packet to port 1806 to any IP address, the message will get displayed. In the example below my macbook is sending the song being played to the LCD display. The LCD display is highly configurable. You can tell it which pin of the raspberry PI is connected to which pin on the LCD display and it will configure itself accordingly. But for the purpose of this demo, I'm going to wire it as per my convenience.

This LCD has 8 data pins. One can use them in 8 bit mode where all the 8 pins are used for data or 4 bit mode where we use only 4 of the 8 pins. I will be demonstrating how to use just 4 pins of the raspberry pi so that rest of the pins can be used for example connecting a sound card, etc.

What you need

1) RPI with OS installed
2) Jumper wires like this. You actually just need 16 jumper wires
3) One potentiometer 10 k for contrast control
4) 20x4 lcd display
5) Female berg strip like this. You will have to break the berg strip so that you have 16 terminals. Then insert the berg strip with 16 terminals into the LCD display and solder them. This is a photo of the LCD display with the berg strip soldered on the back side. You can solder it on the front instead also.
View attachment 77862

Wiring

Raspberry PI has the GPIO header and the LCD has 16 pins. Both are shown below. First is the RPI GPIO header pinout and below that is the pinout for the LCD display

1. Raspberry PI GPIO Header pinout
View attachment 77857
2. 20x4 LCD pinout
View attachment 77858


Now Let us wire the LCD display to Raspberry PI. You will need jumper wires. The table below ilustrates which wire on the RPI to connect to which pin. e.g.

Connect pin 1 on the lcd to pin 6 on RPI - This is the ground
Connect pin 2 on the LCD to pin 2 on RPI - This is +5v
Conect a potentiometer with the outer pins to Ground and +5 v. Connect the middle pin of the potentiometer to pin 03 of the LCD display
Connect pin 4 to pin 22 on the RPI
Connect pin 5 to the ground
Connect pin 6 to pin 18 on the RPI
Connect pin 11 to pin 16 on the RPI
Connect pin 12 to pin 11 on the RPI
Connect pin 13 to pin 13 on the RPI
Connect pin 14 to pin 15 on the RPI
Connect pin 15 to pin 2 on the RPI - This is +5v
Connect pin 16 to pin 9 on the RPI - This is the ground

Table: Wiring Details for connecting LCD display to RPI
View attachment 77861

Software

These are the URLS for the sotware and the binary debian package. You just need to install my lcd daemon and that will pull the libwiring pi dependency.

1. The wiringPi library. Controlling this lcd requires wiring pi library which was written by Gordon Henderson. This is a very popular library and the library became the foundation for other languages in python, php, ruby, perl and node.js - https://github.com/WiringPi/WiringPi
2. The lcd daemon. This has been written by me. It needs to be installed on the raspberry pi which has the LCD display connected. This accepts messages to be written to the display locally using the pilcd command or from the network on UDP port 1806. - https://github.com/mbhangui/lcd-daemon
3. The open Build Service repo at https://build.opensuse.org/package/show/home:mbhangui:raspi/lcd-daemon

Installation
Installtion is very simple. You just need to follow the following instructions by execting the below 4 commands. The First two commands installs the open build service repository from openSUSE. Open Build Service is a free service that allows developers to build RPM, Debian and archlinux packages for free and host the binary packages.


After installation you should see the text "Display Initialized" on the LCD display. Now you can print any text on this display like this. Here are few examples

Display text locally on the first row

Display text locally on the second row

Display text locally on the third row

Scroll text on the fourth row


You can also use the echo command. The below command prints Hi from local on the lcd display



Let us say the IP address of this RPI is 192.168.1.100. Then you can send messages to be printed from any host on the network like this


If you install my mpdev package on your streamer it will display the song information being played remotely on the raspberry pi having the LCD display like shown in the below picture. mpdev can be installed by the following (provided you have enabled my open build service repository)



This is my second version minus the jumper wires. I used a ready-made board that can be connected the the RPI via a ribbon cable
View attachment 77868
This is the raspberry pi display text that was sent to it from a remote streamer (my macbook) playing Jim Reeves Bimbo Bombo

View attachment 77865

This is the my macbook playing Bimbo Bimbo by Jim Reeves and the song information is being displayed remotely on the Raspberry PI which has the LCD display connected

View attachment 77867

Hi,
I am Vinay, i am using RPI4 with snakeoil os as my streamer. I am having a 20x4 HD44780 LCD display with backpack. Can i use this guide to display song information and IP address. My base OS is raspbian bullseye.
Thank you.



[mbhangui]

Hi,
I am Vinay, i am using RPI4 with snakeoil os as my streamer. I am having a 20x4 HD44780 LCD display with backpack. Can i use this guide to display song information and IP address. My base OS is raspbian bullseye.
Thank you.

Yes, you can. All you need to do is wire the display pins and install wiringPI and lcdDaemon
