Extension box with EMI/RFI filter

[Love4sound]

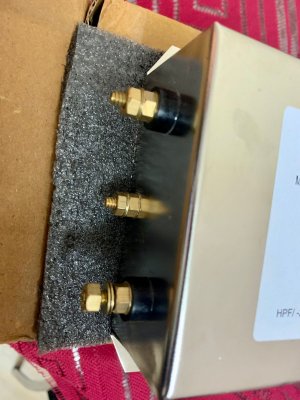

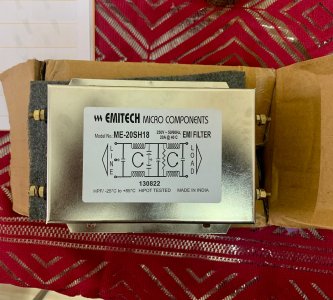

I am building an extension board with 20A load EMI/RFI dual stage filter. Previously I did a 6A board and connection was easy with crimping. This 20A version has bolt type terminals. It has two bolts and two washers in between. Just wanted to run by members here on how to finish the connection. So the input has Line, Neutral and earth terminals. Output has only L-N. so I need to wind two wires and connect earth connections at both ends. For line and neutral should I wind the wires inbetween the washers and tighten the bolt? Please find the images of the product and terminals and advise


EMITECH ME-20SH18, 20A, Single Phase EMI/RFI/EMC Filter (for Frequencies between 100KHz - 30MHz) https://amzn.eu/d/26FWgAF



[Sandip Das]

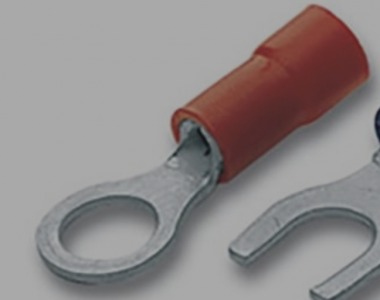

U need this type of lug for wiring.. and fitted to this unit between the washer..



[mbhangui]

I am building an extension board with 20A load EMI/RFI dual stage filter. Previously I did a 6A board and connection was easy with crimping. This 20A version has bolt type terminals. It has two bolts and two washers in between. Just wanted to run by members here on how to finish the connection. So the input has Line, Neutral and earth terminals. Output has only L-N. so I need to wind two wires and connect earth connections at both ends. For line and neutral should I wind the wires inbetween the washers and tighten the bolt? Please find the images of the product and terminals and advise


EMITECH ME-20SH18, 20A, Single Phase EMI/RFI/EMC Filter (for Frequencies between 100KHz - 30MHz) https://amzn.eu/d/26FWgAF

You need 6 of these. The earth will be common



[Love4sound]

View attachment 72023
U need this type of lug for wiring.. and fitted to this unit between the washer..

You need 6 of these. The earth will be common

View attachment 72025

Thanks a lot. Should I get a crimping tool or just use a cutting plier? I tried my local shops and they don’t have the crimping tool. Checked amazon and it’s 1500-2000 for the kit



[mbhangui]

https://www.amazon.in/CALTER-Hand-Crimping-Tools-CMNI-105006/dp/B01N19HB8T/ref=sr_1_12?keywords=crimp+tool&qid=1663593336&sr=8-12

Thanks a lot. Should I get a crimping tool or just use a cutting plier? I tried my local shops and they don’t have the crimping tool. Checked amazon and it’s 1500-2000 for the kit

I got my crimping tool from Ritchie street



[Love4sound]

https://www.amazon.in/CALTER-Hand-Crimping-Tools-CMNI-105006/dp/B01N19HB8T/ref=sr_1_12?keywords=crimp+tool&qid=1663593336&sr=8-12

If this is good enough I’ll go for it. Ritchie street is very far from my home.



[mbhangui]

Then amazon will be cheaper considering the cost of petrol now days.



[Love4sound]

Then amazon will be cheaper considering the cost of petrol now days.

Exactly. I will need 3-4 litres of petrol



[sunshine_vsk]

If this is good enough I’ll go for it. Ritchie street is very far from my home.

you can try at Mercy electronics if its there in your area. May be you can also call and ask them for the produt availability.

https://mercyelectronics.in/shops/



[Love4sound]

you can try at Mercy electronics if its there in your area. May be you can also call and ask them for the produt availability.

https://mercyelectronics.in/shops/

Thanks and yes there is a mercy electronics near by. Will check with them.



[KNRAMU]

Should I get a crimping tool or just use a cutting plier?

I think, Cutting plier is enough upto 10sq. mm lugs.



[Love4sound]

I think, Cutting plier is enough upto 10sq. mm lugs.

Ok but I have ordered the crimping tool suggested above.



[Love4sound]

Couldn’t get from stores nearby including mercy electronics so I ordered lugs on Amazon. Please check the product and let me know if this good enough?

Globomotive Ring Insulated Electrical Wire Crimp Terminals Connectors – E-Copper Wire Lug Battery Cable Ends Eyelets (Inner Diameter 2.5 mm) Pack of 200 https://amzn.eu/d/3eRcG05



[Subbu68]

I think, Cutting plier is enough upto 10sq. mm lugs.

Cutting pliers cannot crimp tight. They cannot punch through the lug like a crimping tool. If there is a loose contact, you had it. Use proper tools.



[mbhangui]

Couldn’t get from stores nearby including mercy electronics so I ordered lugs on Amazon. Please check the product and let me know if this good enough?

Globomotive Ring Insulated Electrical Wire Crimp Terminals Connectors – E-Copper Wire Lug Battery Cable Ends Eyelets (Inner Diameter 2.5 mm) Pack of 200 https://amzn.eu/d/3eRcG05

Is the outer diameter of those screw on the EMI filter 2.5mm?



[Love4sound]

Is the outer diameter of those screw on the EMI filter 2.5mm?

Not sure and spec sheet is not available. Anyways I have cancelled it. Managed to get exactly 6 lugs from urban company electrician. It’s fitting but slightly big. Hopefully should be good enough



[mbhangui]

Not sure and spec sheet is not available. Anyways I have cancelled it. Managed to get exactly 6 lugs from urban company electrician. It’s fitting but slightly big. Hopefully should be good enough

That's fine. Put it in between the two washers that have come for each of those terminals



[Love4sound]

That's fine. Put it in between the two washers that have come for each of those terminals

Sure. The 20A EMI filter is very big so ordered an outdoor junction box. Should arrive by Saturday.



[Subbu68]

Not sure and spec sheet is not available. Anyways I have cancelled it. Managed to get exactly 6 lugs from urban company electrician. It’s fitting but slightly big. Hopefully should be good enough

It should be snug fit on the stud else it can become loose due to thermal cycling, overheat and melt. Lug's hole should be just 0.1 to 0.5 mm larger than the bolt.

Your previous order on Amazon said the ring dia is 5mm. That is the hole size. Perhaps too large.



[Love4sound]

It should be snug fit on the stud else it can become loose due to thermal cycling, overheat and melt. Lug's hole should be just 0.1 to 0.5 mm larger than the bolt.

Your previous order on Amazon said the ring dia is 5mm. That is the hole size. Perhaps too large.

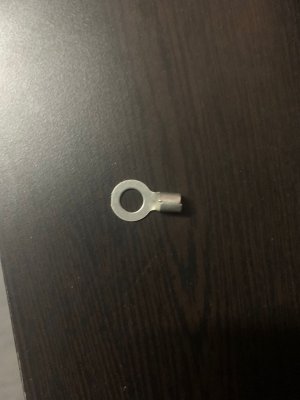

Ok so the lugs I have shared in the image are not snug fit. If you can see the image they are slightly loose. So I need to take it to the shop and buy lugs after trying them on.
