Horn-based speaker projects

[Vineethkumar01]

Hi All,
Due to my newly found love for horn-based speaker projects, I found some links which may be good. Sharing for others interested.
This site has many horn-based speaker projects:

Joseph Crowe Audio Products

Joseph Crowe is a business offering design and built-to-order components and speakers. We specialize in Horn Speakers and Bass Cabinets.

josephcrowe.com

He has subjective and objective assessments for most of his projects..
Look-of-the-speaker-wise, I like some of his projects like the nighthawks and its subsequent versions.
As of now, I am not qualified enough to comment/judge about its sound quality-related aspects..

For anyone interested in building your own horn-based projects, please check out:

Acoustic Horn Design – The Easy Way (Ath4)

Acoustic Horn Design – The Easy Way (Ath tool) This is an associated thread for a waveguide generator called Ath (Advanced Transition Horn), version 4. Ath is a piece of software for designing waveguides and horns. At the same time it makes it possible to easily simulate their acoustic...

www.diyaudio.com

SOme builds here:

Acoustic Horn Design - The Practical Way

It was suggested to me to start a thread regarding the actual practical builds of horns and waveguides, mainly designed with the Ath. So here it is, for everyone to share their own way of converting their design into something real and listenable. Show off! :) So far the tool can generate: -...

www.diyaudio.com

and mabat's website here for the free design software:

ATH - Advanced-Transition Horns

Advanced Transition Horns

at-horns.eu

Many designs are even available for free for 3D printing, CNCing.

Thanks
Vineeth



[Decadent_Spectre]

Good thread! Will watch.

Have you learnt Hornresp yet?



[Vineethkumar01]

Good thread! Will watch.

Have you learnt Hornresp yet?

No. not yet.

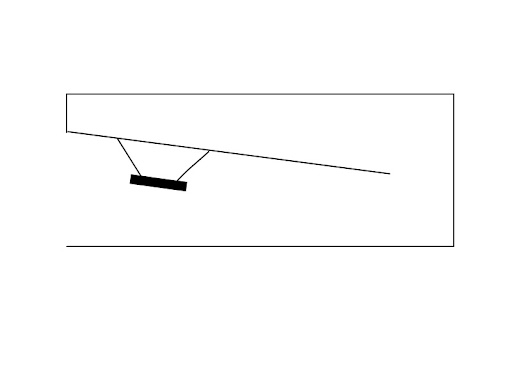

This is all i know about hornresp yet (using it for transmission line design):



[Decadent_Spectre]

No. not yet.
This is all i know about hornresp yet (using it for transmission line design):

Well when you've mastered it please let me know, I gave up DIY so I never really got into it. I'd be interested to see what horns you come up with once your familiar with the software.

Did you consider learning Akabak? I did not



[Vineethkumar01]

Well when you've mastered it please let me know, I gave up DIY so I never really got into it. I'd be interested to see what horns you come up with once your familiar with the software.

Did you consider learning Akabak? I did not

Sure.. Akabak is another future personal goal for me.. I am very interested after seeing the ABEC results about cabinet impact on driver radiation that i got done with others help in my current project..
Only issue for me in doing all this is lack of time. My job buries me in a lot of boring work. Hopefully i will find time, learn it and once done, I will surely let you know..



[Vineethkumar01]

Sharing Scott's video on bass horns... again design tips using hornresp.
I think Scott works in some Pro audio company and he has a lot of big speakers/horns at home..
I like Scott's videos and papers in general. He writes easy to read and understand papers on all things related to speaker design.
He has a facebook page called DIYRM.
Here is one relevant to this subject of horns:

Sharing a link to his other works here:

DIYRM Post Tracking

Sheet1 Note: For anyone posting a link to the papers, please post the Facebook link....that way I can see which posts are the most popular. If you post a link to the pdfs it's much harder to track. Thank you! 716,56,145832,1022.857143 Post Topic,Pages,Figures,Words,Area,Link Sheet Goods for L...

docs.google.com

Also attaching the link to a complete design document of his regarding a recent pro audio speaker design of his made available DIY community (also available in earlier posted master list of all his posts):

https://drive.google.com/file/d/1JoI2jQcMoONhGI8M928vW8HZxlwvAWwk/view?fbclid=IwAR0iUE_xs1meEOMgqroepuc6AJv-4l6g32iZ7ojCuMcH9tXQv1zPivcetB4



[keith_correa]

Wow!
Are we talking about objectivity here?
With the aid of design software?
And the discussion is yet civil with no hate posts so far?
Double wow!
Congratulations, all!



[Decadent_Spectre]

Wow!
Are we talking about objectivity here?
With the aid of design software?
And the discussion is yet civil with no hate posts so far?
Double wow!
Congratulations, all!

Keith, I am not opposed to understanding objectivity. I am opposed to using it as the final measure of a product. Just in case you meant me, all in good faith



[Vineethkumar01]

A must read for horn enthusiasts including myself for learning some basics of horn theory: https://www.grc.com/acoustics/an-introduction-to-horn-theory.pdf (current golden reference about the theory: https://www.parts-express.com/High-Quality-Horn-Loudspeaker-Systems-500-032)

Bjorn Kolbrek's website with lots of interesting information about horns:

Home

Welcome to Bjørn Kolbrek's homepage

kolbrek.hornspeakersystems.info

Lots more interesting information: https://sphericalhorns.net/

About some recent developments in horn design:

A Novel Constant Directivity Horn

Dario Cinanni details its acoustic simulation study about high-frequency horn driver transducers. Using a novel equation that correlates the matrix of a virtual horn and measured compression driver pressure, it is possible to easily predict the absolute sound pressure level (SPL) of the real...

audioxpress.com

https://audioxpress.com/files/attachment/2705



[sunilj]

Here's some links I found useful to understand Hornresp.

Hornresp for Dum... hmm... Everyone ;)

www.hometheatershack.com

Simple Tapped Horn Tutorial using Hornresp

www.avsforum.com



[drlowmu]

Horns !! I run ALTEC VOTT A7-8s in my apartment. ' Truly enjoy them.

Kindly please, view the web pages of Inlowsound.com. John Inlow is a very nice person, a DIY horn enthusiast, a man with wonderful grace, and his web site is fun to view, and in many ways, compelling to experience.

Jeff



[drlowmu]

Horn enthusiasts.....kindly take a look at this post over in DIY, that I just put up. Very interesting design !!!!!

Final Photos and Final Testing, stereo 6005 SE DC amp from 2021

First order of business , a public apology to Yogibear. There was a mistake, in that I initiated a written private email apology to Yogibear ( Samir ) on 2-09-2022, with a CC to Hari Iyer. This apology was totally my own unsolicited idea. He deserved it. Somehow it seems, Yogibear had...

www.hifivision.com
