thanks for clarification, that's how rolling OPAMPS is possible !!
The local electronics market dont have any OPA's available hence I picked up 6-8 different dual OPAMPS and just now checked that LM386 the one I'm experimenting with is not suitable for CMoy application.
*********************************************************
Mishra Sir,
What I was trying to convey is:
"I get all correct readings upto this point"
Things get messed up here:
At this point I get unequal ratings something like -6.5 volts in negative and 2.7 volts in positive, needless to say there's no sound/hiss/click at all.
I first need to make a list of suitable OPAMP for this application and hope I have one/two with me already or get them from the market on my next off.
The local electronics market dont have any OPA's available hence I picked up 6-8 different dual OPAMPS and just now checked that LM386 the one I'm experimenting with is not suitable for CMoy application.
*********************************************************
Mishra Sir,
What I was trying to convey is:

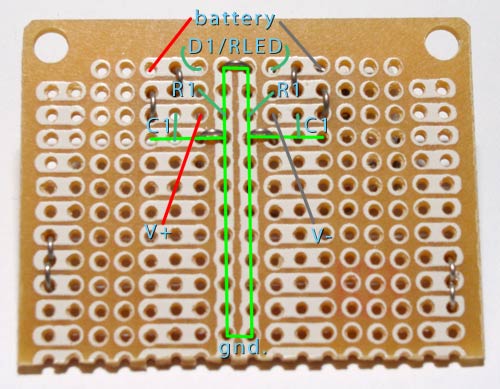

Test: Set your meter to DC volts, apply power to the board, and measure from the virtual ground (marked gnd. in the images) to the hookup wires going to the V+ and V- holes. If youre using a single 9?V battery as your supply (recommended for testing), you should see a positive DC voltage at one cap and a negative voltage at the other cap, and their magnitudes should be nearly identical. For example, if youre using a 9?V battery thats been depleted to 8?V, you should see almost exactly +4?VDC and -4?VDC. If youre off by more than a tenth of a volt or so, you did something wrong in hooking the circuit up. The most common mistake is a solder bridge, which usually causes the full input voltage (8?V in our example) to appear on one side of the power supply and 0 volts to appear on the other side. Fix any problems before continuing.
Also, make sure you get a positive reading between the V+ hookup wire and ground and a negative reading between V- and ground. If not, something is reversed. You can either leave it like it is and just run the wires differently when hooking the power up to the op-amp, or you can find and fix the problem. (This only applies if youre using a digital meter, and you hook its black probe to the gnd. point for both tests. Analog meters generally cant show negative readings, so you end up hooking the red lead to gnd. and the black to V- for that test.)
Unplug the power supply before continuing.
"I get all correct readings upto this point"
Things get messed up here:
Next, take the hookup wires going to the V+ and V- points on the power supply and run them to the V- and V+ points of the op-amp pins 4 and 8. I recommend you do this on the bottom side of the board, since youll be adding a bunch of wires that have to be on the top of the board later. The more wires you can put on the bottom, the cleaner the top side of the finished amp will be, which facilitates later repairs and tweaks.
At this point I get unequal ratings something like -6.5 volts in negative and 2.7 volts in positive, needless to say there's no sound/hiss/click at all.
I first need to make a list of suitable OPAMP for this application and hope I have one/two with me already or get them from the market on my next off.
