Jean Hiraga Super 30: MOSFET version

[hydrovac]

Hi all!
Current project: JH Super 30 MOSFET version build log...

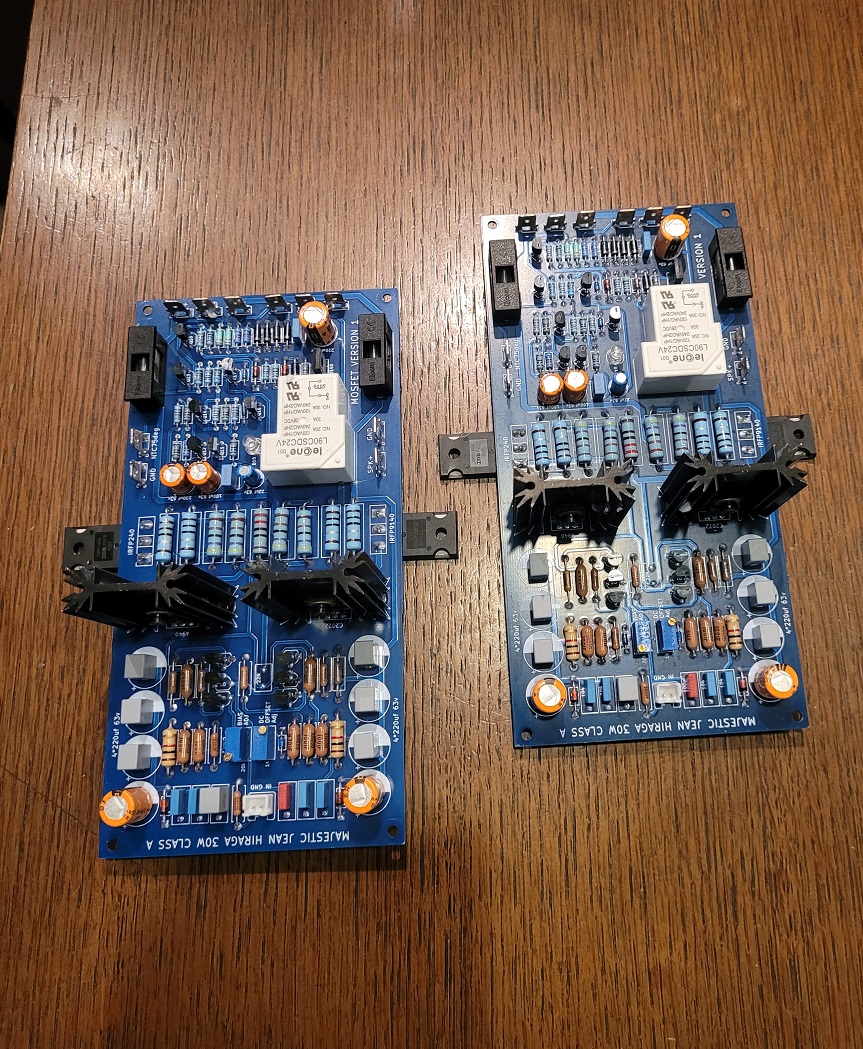

The modules

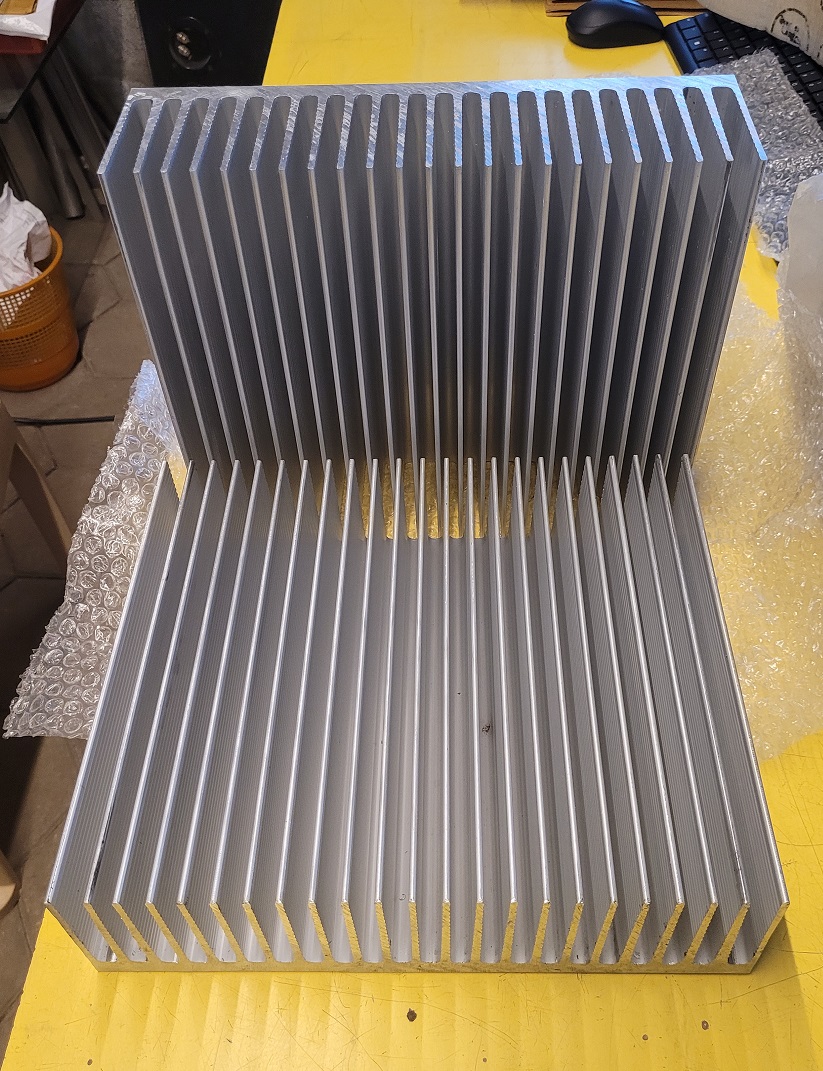

The heat sinks weigh 7.5 kg each

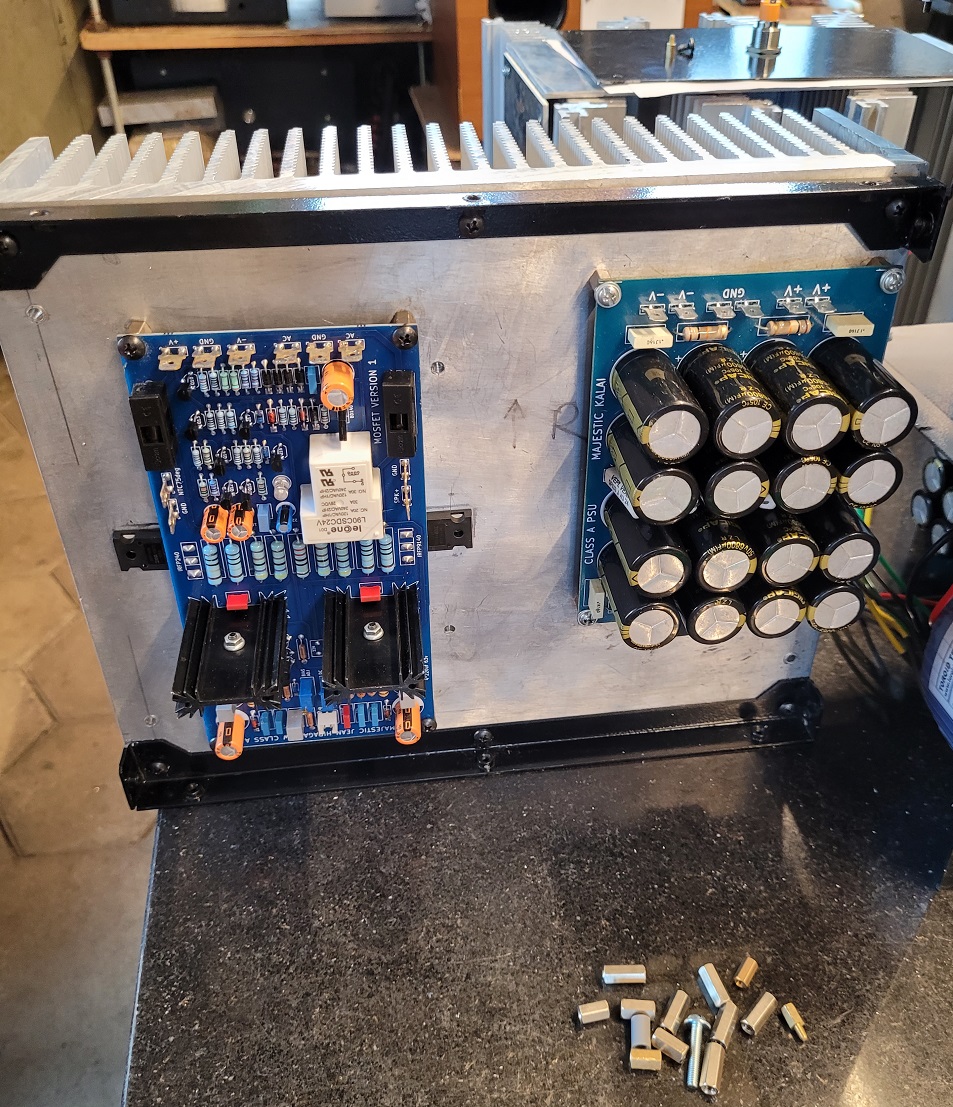

The PSU bridge and Amp module share the same heat sink.

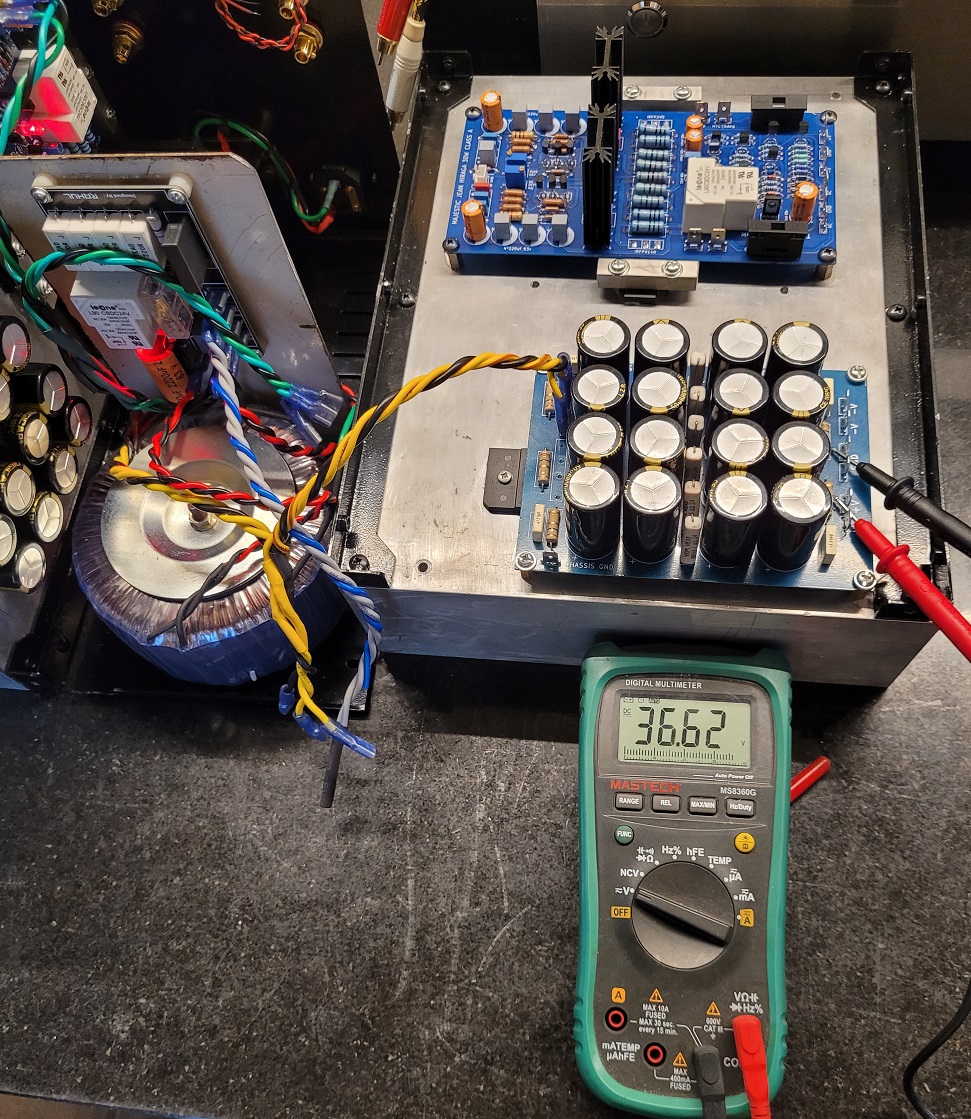

36 vdc rails... presently biased @ 1.5A

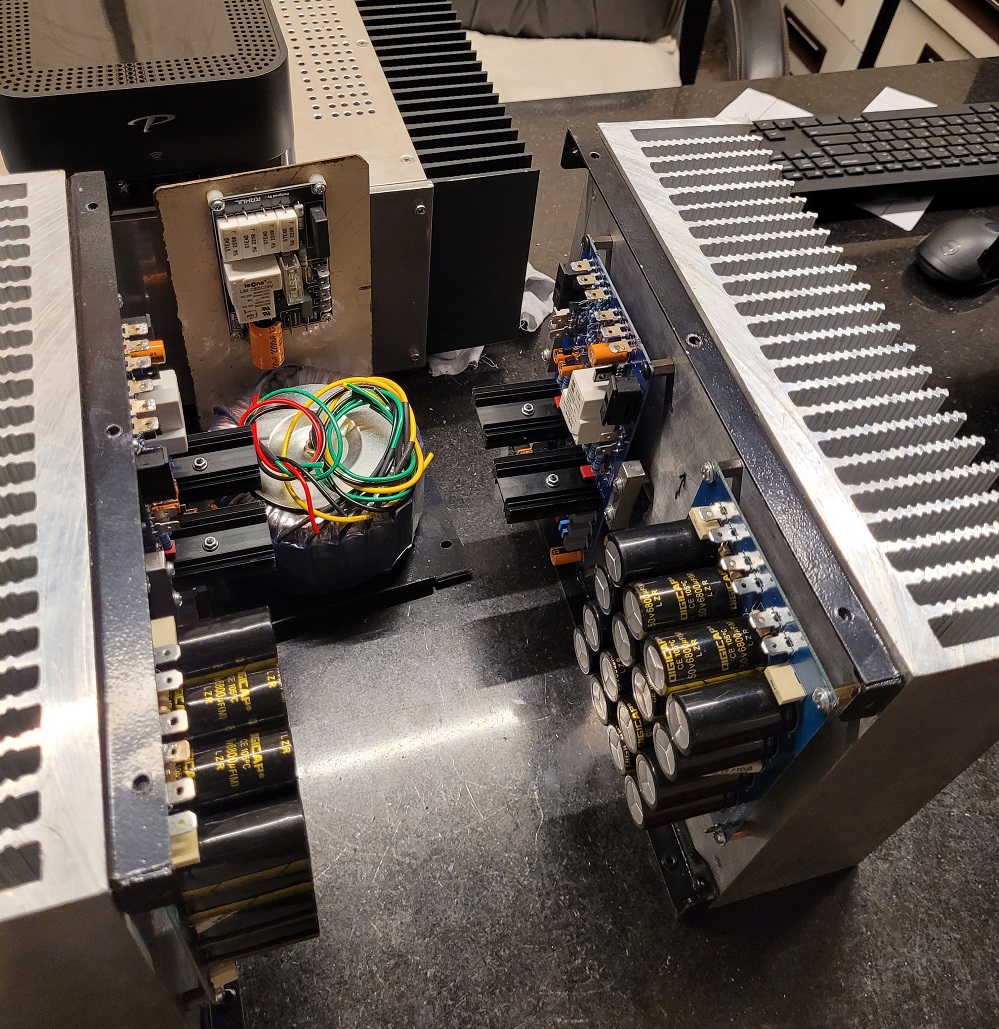

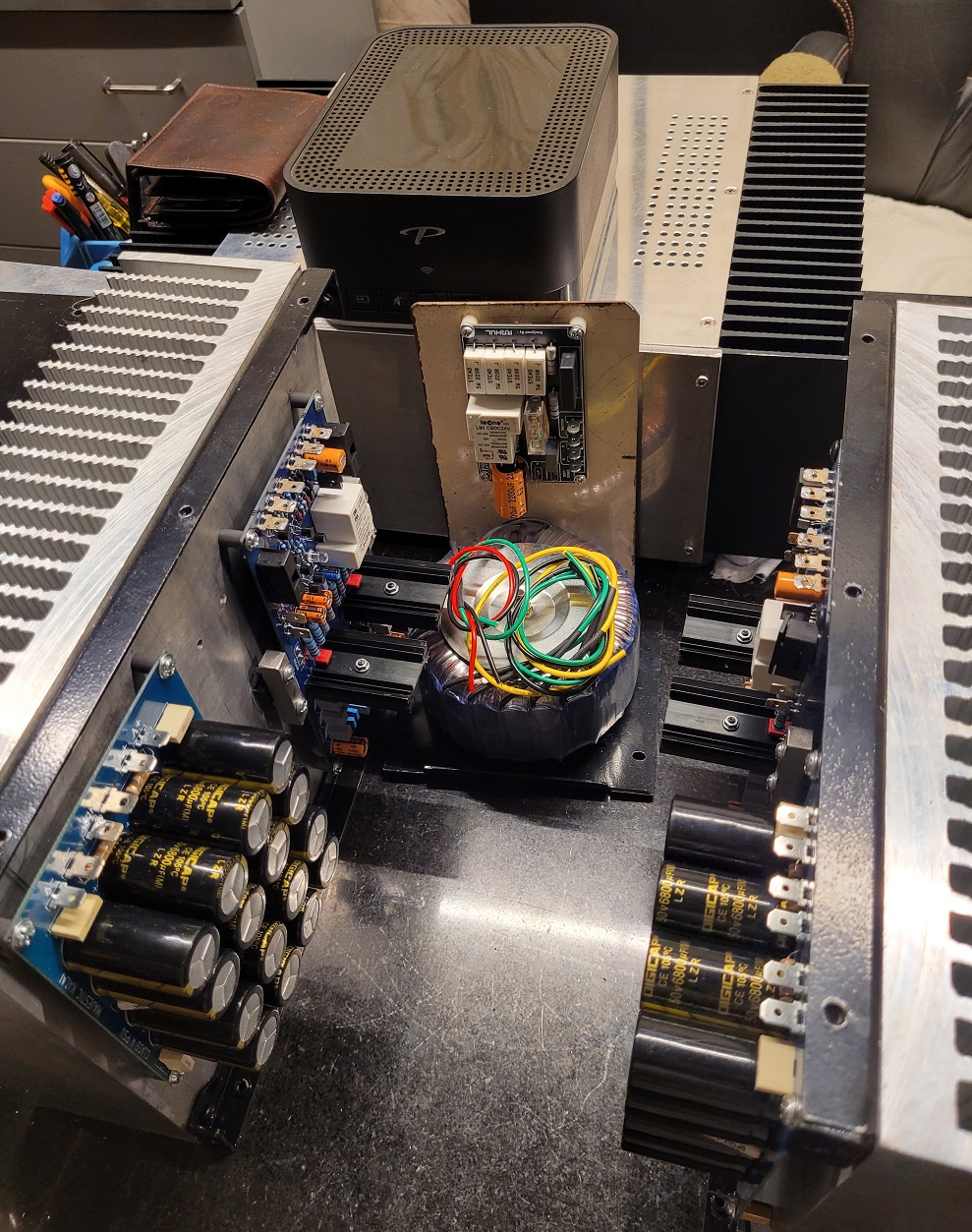

26-0-26 sec Trafo and soft start.

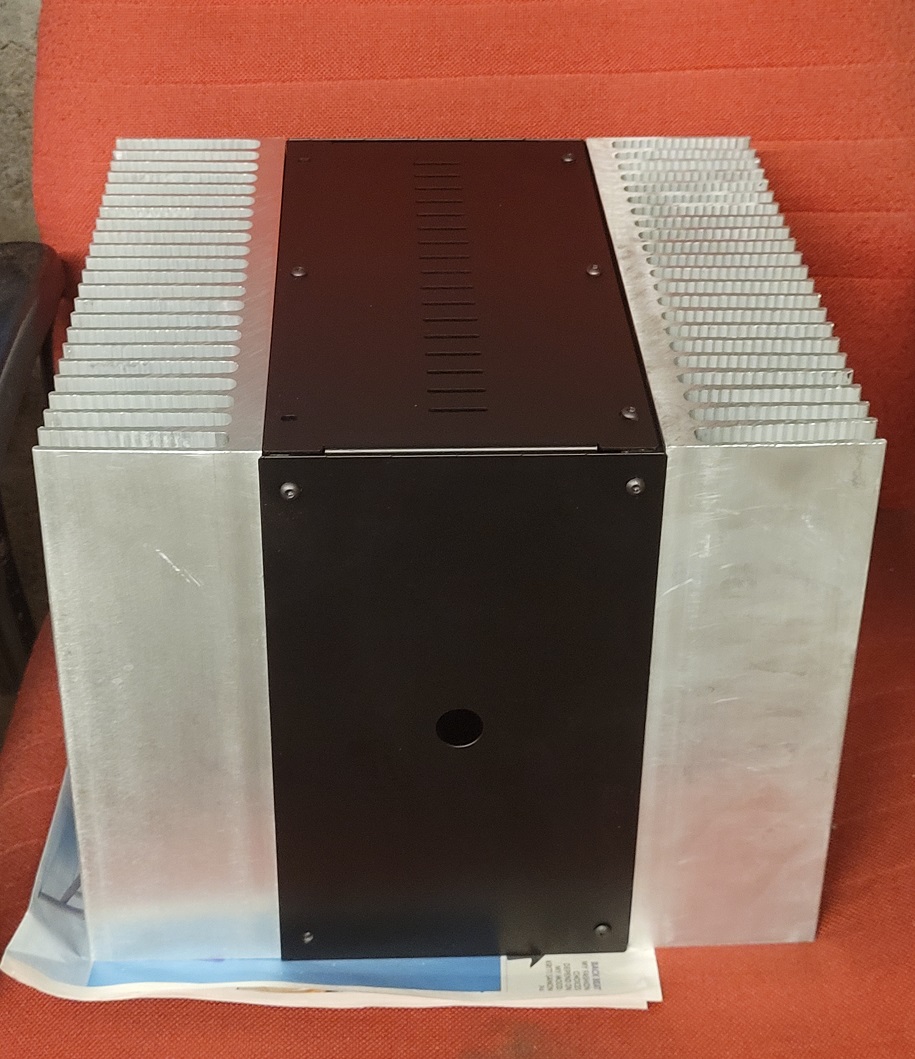

The case/enclosure/chassis

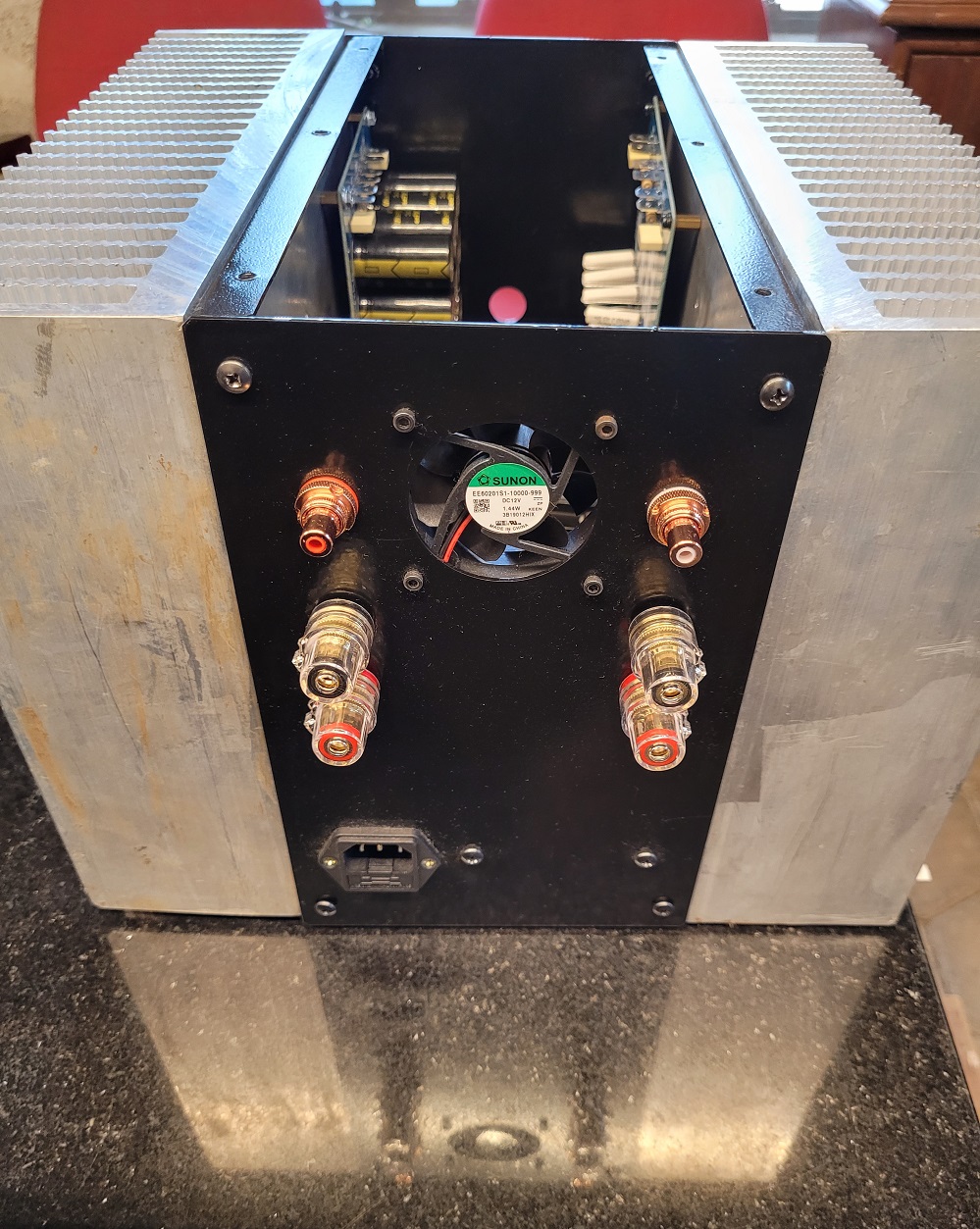

Back panel with a small fan.

...



[CKumar]

You build so many of them with perfection and passion that it is Drishyam for eyes.
What happens to previous builds once you move to new one?



[hydrovac]

Nothing in particular... they just sit on racks watching me build new buddies.

...
