High-End Monitor Loudspeaker "Kairos" – by Late Mr. Jeff Bagby (RIP)

sadik

Well-Known Member
Joined
Jun 14, 2015
Messages
1,008
Points
113
Location
Vadodara
Today I finished another project. I made total 3 Pairs of Enclosures for one of our Forum Member @kartikay. These enclosures are called “KAIROS”. They are designed by the Legend itself Late Mr. Jeff Bagby (RIP). I have made only the enclosures & had only 1 Woofer and tweeter to check the fitment so I was unable to play them at my end.

I will not be writing much about it as everything can be found on this link Kairos

Sharing some photos of built journey. All cutting is done on CNC router.
The degree cutting is done by circular hand saw.
Assembling the pieces with clamps. Since the day i started to use clamps I have never used nails or screws in my built to join the 2 pieces of wood / mdf / ply.
After Assembly
IMG_20201217_174846.jpg IMG_20201226_185834.jpg IMG_20201226_185844.jpg
This is why drivers are needed. I made the tweeter cutout with reference to the dimensions provided. But it turned out little different so i have to make anotrer 2 slots for tweeter fitment. The correction done can be seen in below image. (Divers were received after assembly of enclosures)
In below photo the enclosures seen are sprayed with primer and are ready for final paint. Before Primer, the first coat done was with sanding sealer. (In my earlier threads i have mentioned my paint process so i wont mention it again in this thread)
The Below enclosures are sprayed with final paint and are ready for polishing.
The Final Outcome.
As I said i just had Single driver so ........
i tried to capture the metallic shine of paint but donno if below photo is making justice for same.

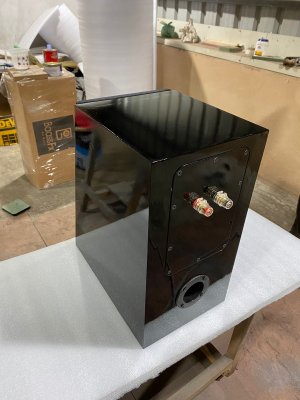

Back Side.

Hope you all enjoyed reading & looking this thread.


RaahulT

Active Member
Joined
Oct 15, 2018
Messages
151
Points
28
Location
Chhattisgarh
You have reached the other level in creating such super magnificent enclosures. Looking up for your new creations especially mating some nice drivers tuned with such wow looking enclosures and resultant miracles.


sadik

Well-Known Member
Joined
Jun 14, 2015
Messages
1,008
Points
113
Location
Vadodara
Thankyou Friends for your compliments. I will try to do more better in my next Project.


arunhc

Active Member
Joined
Apr 9, 2011
Messages
303
Points
43
Location
Bangalore
@sadik not only are your building skills exemplary, your photography skills in showing the shine, gloss, black levels all have gone up considerably, and you have put in your effort into that too i see
all the very best
:)


sadik

Well-Known Member
Joined
Jun 14, 2015
Messages
1,008
Points
113
Location
Vadodara
Hello Friends,

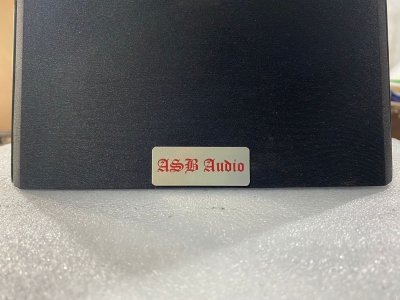

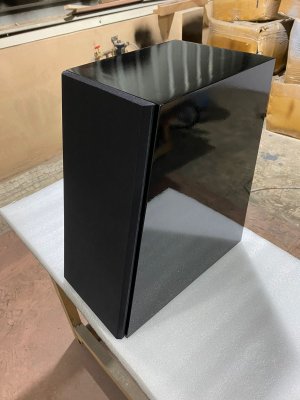

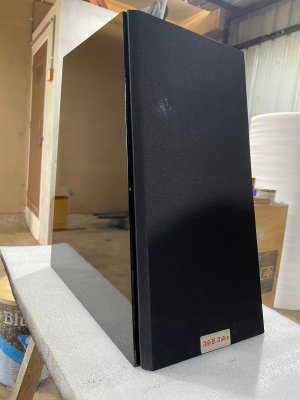

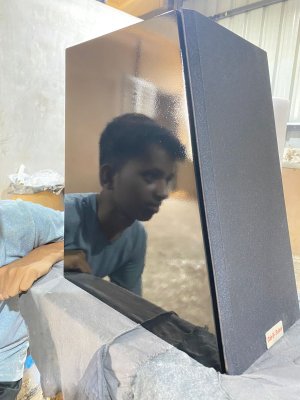

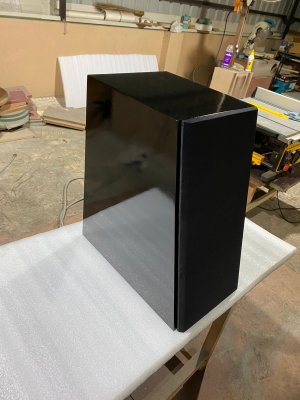

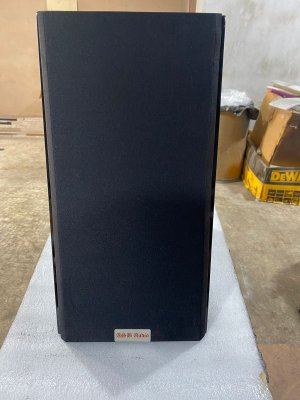

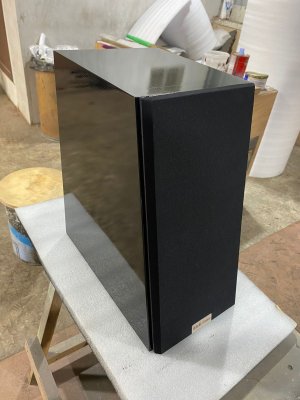

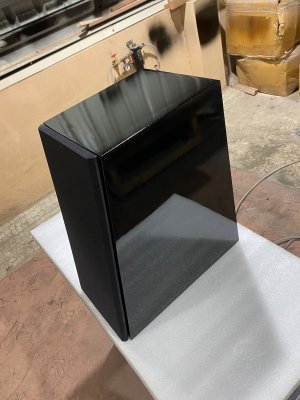

I am posting something after a very very long time. I am back with another set of kairos which i built on Order. I am sharing some finshed pics.
Kairos (1).jpeg Kairos (2).jpeg Kairos (3).jpeg Kairos (4).jpeg Kairos (5).jpeg Kairos (6).jpeg Kairos (7).jpeg Kairos (8).jpeg Kairos (9).jpeg

In between i have done few builts but i did not had time to take proper pics and share them. I will soon start a new thread only for my built no matter which kind of Enclosure, Everything will be under one roof.

A beautiful, well-constructed speaker with class-leading soundstage, imaging and bass that is fast, deep, and precise.
