Gypsum board as low frequency absorber?
- Thread starter Fiftyfifty
- Start date
Great information, thanks. What I hear in my room is completely in line with what the video says. The air gap helps absorb low frequency without absorbing midrange which is exactly what i intend.
My subjective listening experience says this:
Gypsum board 12mm with 70mm air gap provided better low frequency absorption, without affecting midrange, than rockwool 60mm.
sud98
Well-Known Member
But rockwool with low density will give even better or rockwool sheets with air gaps. Its a simple curve between absorption and air flow that decides the same. There was a similar discussion earlier and we had shared the graph for the same too.
I understand. But in practice, rockwool didn't work for me. Moreover, gypsum board is only 12mm thick. The rest is air. I guess densities and product specs come into play too, so finally I'll let my ears decide
I have used the Champagne corks under my Denon amplifier.
panditji
Well-Known Member

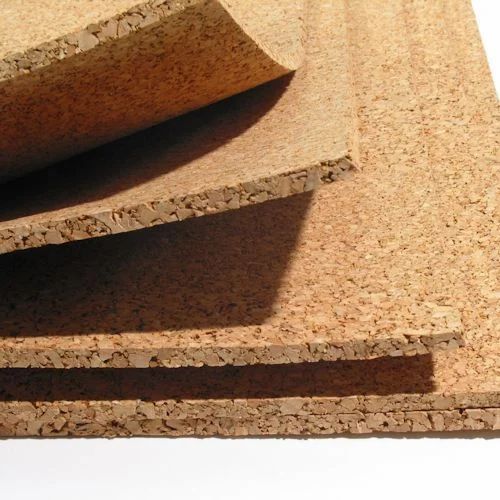

Sir, there are cork sheets available like the one below:
www.indiamart.com
These can be placed on the wall behind you and can be covered with cloth as well if you don't like the look of natural cork...
Cork Sheet
U.S.Insulation Products - Offering Cork Sheet, Size/dimension: 915mm X 610mm at Rs 125/piece in Greater Noida, Uttar Pradesh. Get Cork Sheets at lowest price | ID: 15361671762
These can be placed on the wall behind you and can be covered with cloth as well if you don't like the look of natural cork...
not an expert.. free online gyaan
read somewhere air is the best bad conductor in acoustic setups. Customized rooms have a room within room with a gap. Therefore, no wonder you are seeing benefits. As for gypsum board, based on my limited understanding, the very reason it is popular in office setups, especially big ones as it helps reduce echo, to the point that in combination with carpet, it almost deadens sound.
In my limited understanding, Absorbtion should be complemented with diffusion.
read somewhere air is the best bad conductor in acoustic setups. Customized rooms have a room within room with a gap. Therefore, no wonder you are seeing benefits. As for gypsum board, based on my limited understanding, the very reason it is popular in office setups, especially big ones as it helps reduce echo, to the point that in combination with carpet, it almost deadens sound.
In my limited understanding, Absorbtion should be complemented with diffusion.
Last edited:
cmsajith
Well-Known Member
Gypsum boards can act as a bass absorber, not like a porus absorber rather like a panel absorber, provided the screws are wide enough to help in flexing. The freq range depends on the resonant frequency of the board.
sud98
Well-Known Member
I am not sure how it will work as a panel absorber. Gypsum is a porous material with an absorption coefficient of less than 0.1.
For speaker cabinets, I think you need to use MDF/hardwood and enough bracing. Not sure if Gypsum boards will have the strength to hold multiple drivers.
I will use this post to try and justify buying champagne….that’s 8 bottles I need.
The sacrifices we make in pursuit of great sound is amazing!
What I intended to ask was Gypsum being used a lining material inside the cabinets to absorb resonances, not as the material with which one constructs the cabinets itself.
cmsajith
Well-Known Member
Yes, it can flex and a panel absorber uses this flex to absorb sound when that flex is absorbed to a soft material with a tuned reverse force from the back side. Its not like normal porous absorbers
theironhorse
Well-Known Member
not very effective, rockwool else glasswool however glasswool causes severe itching hence rockwool is a better alternativeFriends, time out. Let us talk about the acoustic properties please, not the carcinogenic risks
@Fiftyfifty Hi, any update on the gypsum board purchase and installation ?
I would be very interested to find out if you managed to incorporate these into your listening room and how did you go about it, if at all.
Cheers.
I would be very interested to find out if you managed to incorporate these into your listening room and how did you go about it, if at all.
Cheers.
@AudioGugu It has worked well for me.
Before trying out the Gypsum Board, I had used 2" thick rockwool panels which did not do anything. I had read about Gypsum Board acoustic properties and decided to give it a go. I bought 2 panels of 4' x 8' each and placed them against the back wall in 3 ways - Flush against the wall, with a 2 " rockwool panel between the wall and the Board and lastly with nothing but a 1" airgap between the wall and the panel. The last option worked best. The bass boom reduced by over 50 percent which was good enough for me and better than what I could achieve with other simple options. Being satisfied with the result, I then had a carpenter make a 1" thick wooden frame and mounted the gypsum board on the frame, followed by putti/painting and all. Pictures attached. I am considering getting an artist to paint something directly on the panel.
The experiment is inexpensive - you get the panels for a few hundred rupees and place them to test the results before permanently fixing them.
Best wishes
Before trying out the Gypsum Board, I had used 2" thick rockwool panels which did not do anything. I had read about Gypsum Board acoustic properties and decided to give it a go. I bought 2 panels of 4' x 8' each and placed them against the back wall in 3 ways - Flush against the wall, with a 2 " rockwool panel between the wall and the Board and lastly with nothing but a 1" airgap between the wall and the panel. The last option worked best. The bass boom reduced by over 50 percent which was good enough for me and better than what I could achieve with other simple options. Being satisfied with the result, I then had a carpenter make a 1" thick wooden frame and mounted the gypsum board on the frame, followed by putti/painting and all. Pictures attached. I am considering getting an artist to paint something directly on the panel.
The experiment is inexpensive - you get the panels for a few hundred rupees and place them to test the results before permanently fixing them.
Best wishes
Fabulous. Looks good & does the job. Thanks for sharing pictures.
Hi
I have a room size of 21x16.5 feet with 11 feet ceiling height.
Room was equipped with Sonus Faber, Tube amp and DAC with old Nakamichi rack. Room was filled with distortion phase noise, low frequency standing waves. Carpet with underlay and roof with mineral ceiling contribute a minor role but still not satisfied. Room was resonating at frequency of 26 to 30 Hz for three to four seconds delay rest of the frequencies were under control. Lot of efforts made but finally I decided to get help from consultant who made large cinema and have experience of controlling low frequencies. They suggested to come up with gypsum sound boards with small holes in sheets.
Ohh. What a fine treatment. It removed all standing waves and made the audio room very quite and the faintest audio note were appear in music. Blues are so relaxing. Rarely the songs of Lata, Mehdi Hassan seems me performing right in the middle.
It's a wonderful experience.
I have a room size of 21x16.5 feet with 11 feet ceiling height.
Room was equipped with Sonus Faber, Tube amp and DAC with old Nakamichi rack. Room was filled with distortion phase noise, low frequency standing waves. Carpet with underlay and roof with mineral ceiling contribute a minor role but still not satisfied. Room was resonating at frequency of 26 to 30 Hz for three to four seconds delay rest of the frequencies were under control. Lot of efforts made but finally I decided to get help from consultant who made large cinema and have experience of controlling low frequencies. They suggested to come up with gypsum sound boards with small holes in sheets.
Ohh. What a fine treatment. It removed all standing waves and made the audio room very quite and the faintest audio note were appear in music. Blues are so relaxing. Rarely the songs of Lata, Mehdi Hassan seems me performing right in the middle.
It's a wonderful experience.
